Product Specification
| Generator Set Specification | |
| Model | C80S3 |
| Prime Power | 80KVA |
| Standby Power | 86KVA |
| Voltage | 400/230v(voltage can be customized) |
| Frequency | 50/60HZ |
| Rated Speed | 1500 RPM |
| With Diesel Engine | |
| Brand&model | Original Cummins Engine&
4BTA3.9-G11 |
| Engine Type | 4 Cylinders, in line, water cooled |
| Prime Power | 80/90KW |
| Bore*Stroke | 102×120mm |
| Displacement | 3.9L |
| Fuel Consumption at 100% Load | 228 g/KW.H |
| Working Mode | Turbo-charged |
| Starting system | 24V Electric |
| Fuel Consumption(g/KW.H) | 228 |
| With Alternator | |
| Optional Brands | Leroy Somer/hAMAN/Stamford |
| Alternator Model |
Model: 86S3 |
| Power factor | 0.8 |
| Loop Mode | Three phase four line |
| Insulation Grade | H |
| Excitation Type | Brushless self-excited constant voltage (AVR) |
| Pole No. | 4 |
| With Genset | |

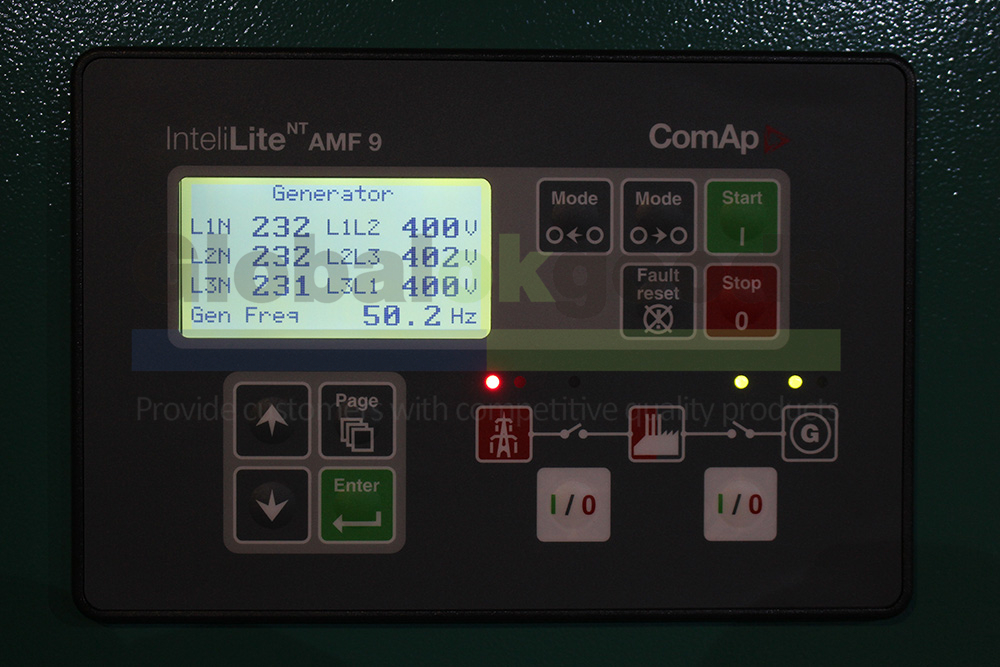

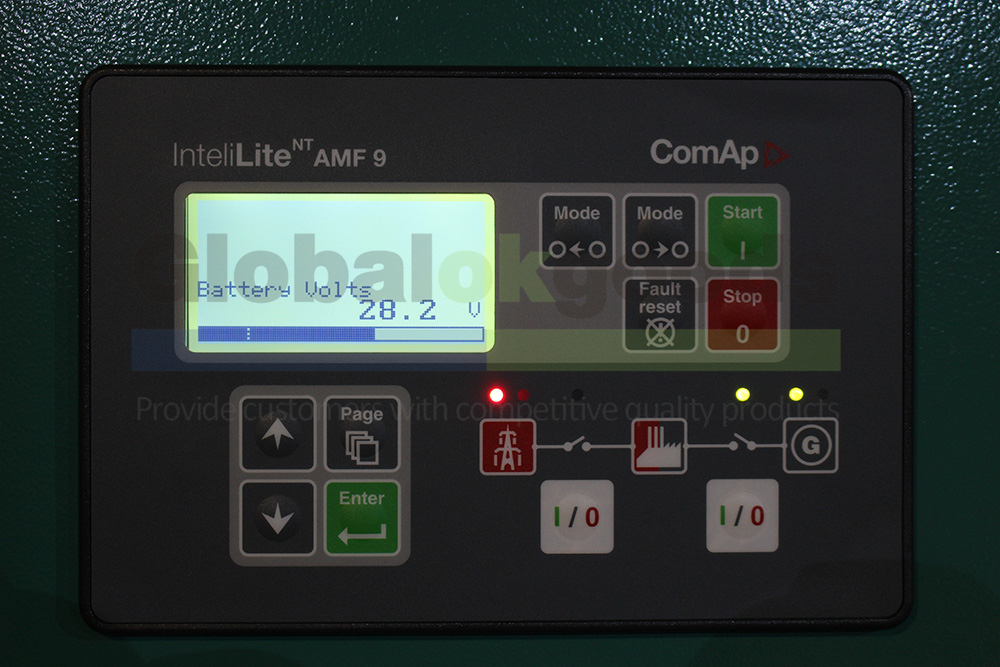

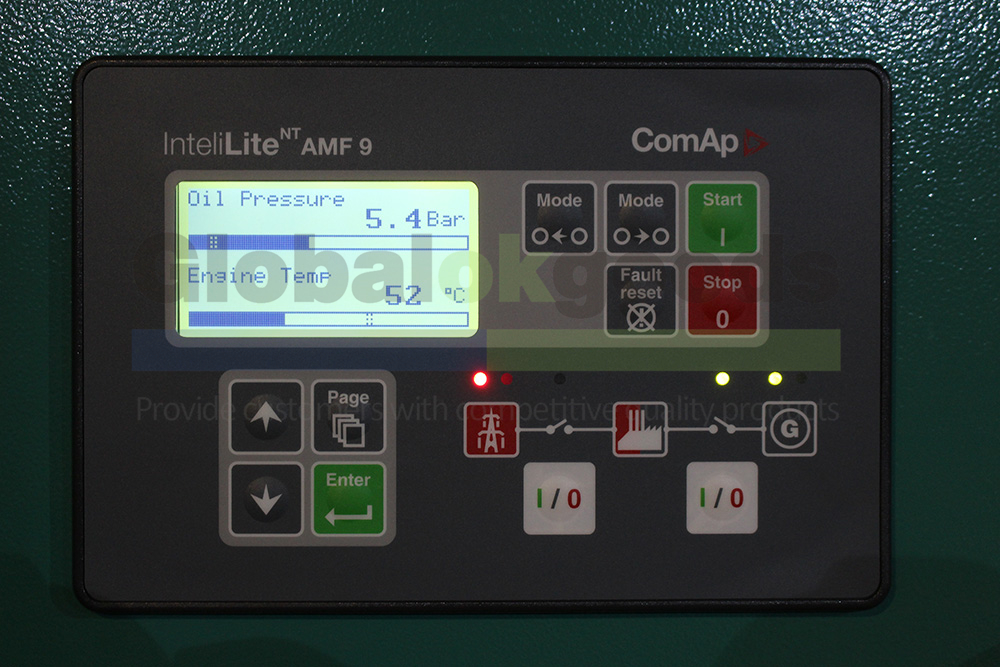

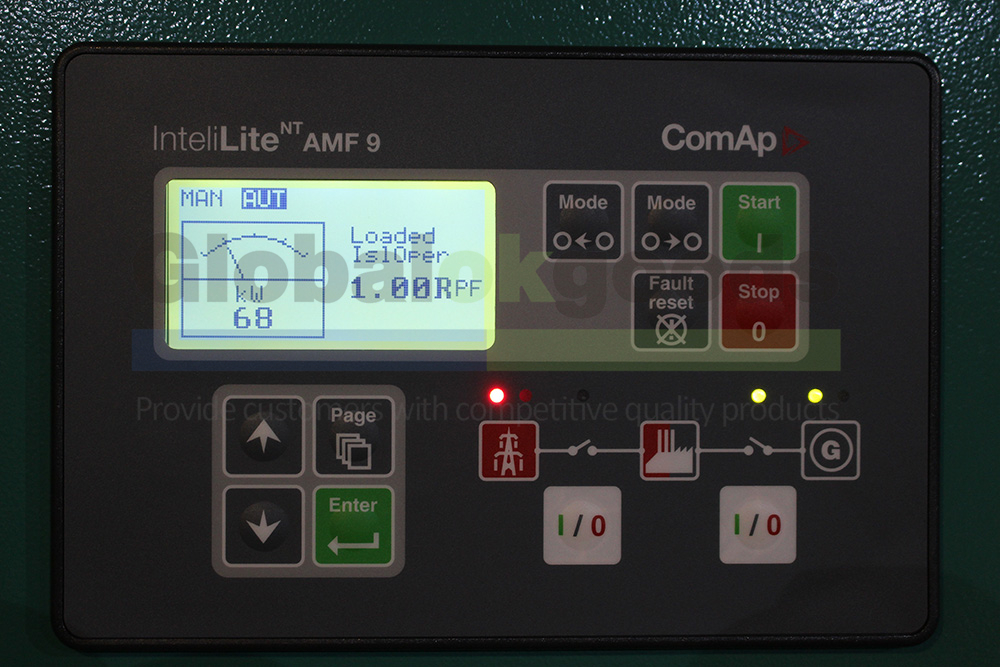

| Control System | Digital Controller |
| Output Voltage(V) | 400/230 |
| Noise Level db(A)7m | 68 |
| Fuel Tank Capacity(L) | 250 |
| Continous Running Time(h) | 8-10 |
| Overall Dimension(mm) |
2960X1100X1600 |
| Net Weight (Kg) | 1650 |
