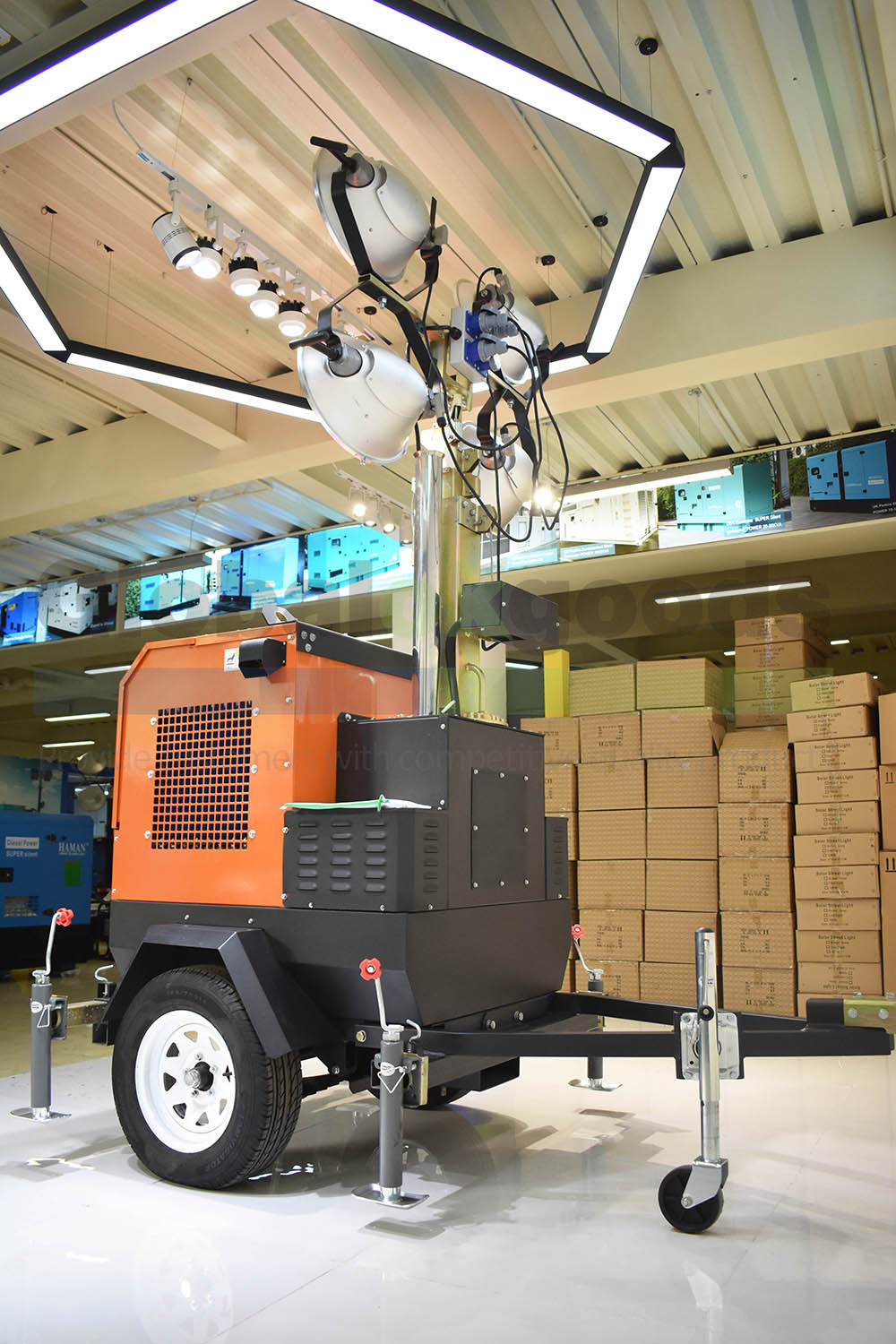

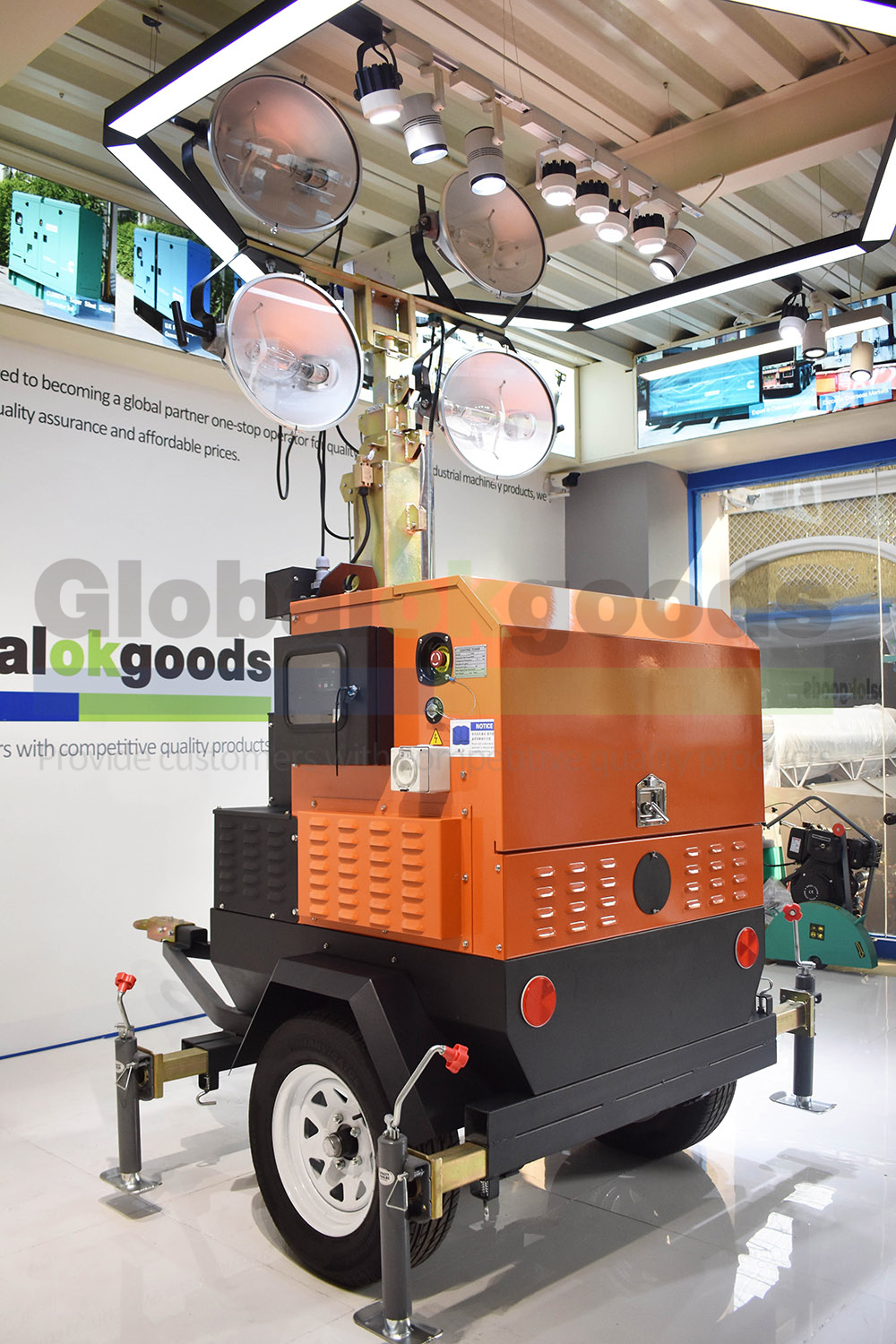

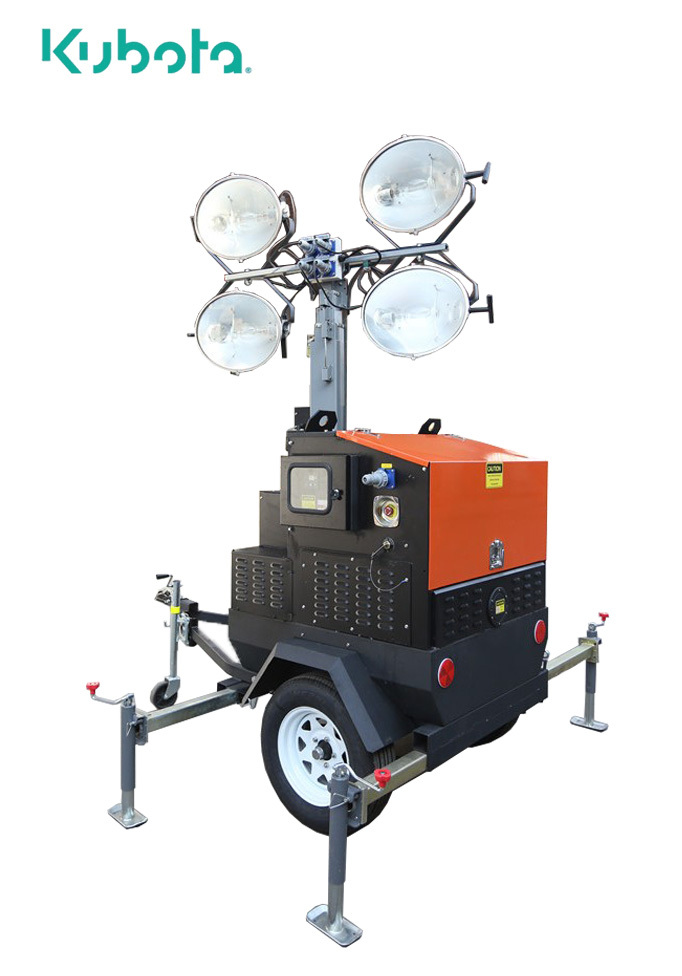

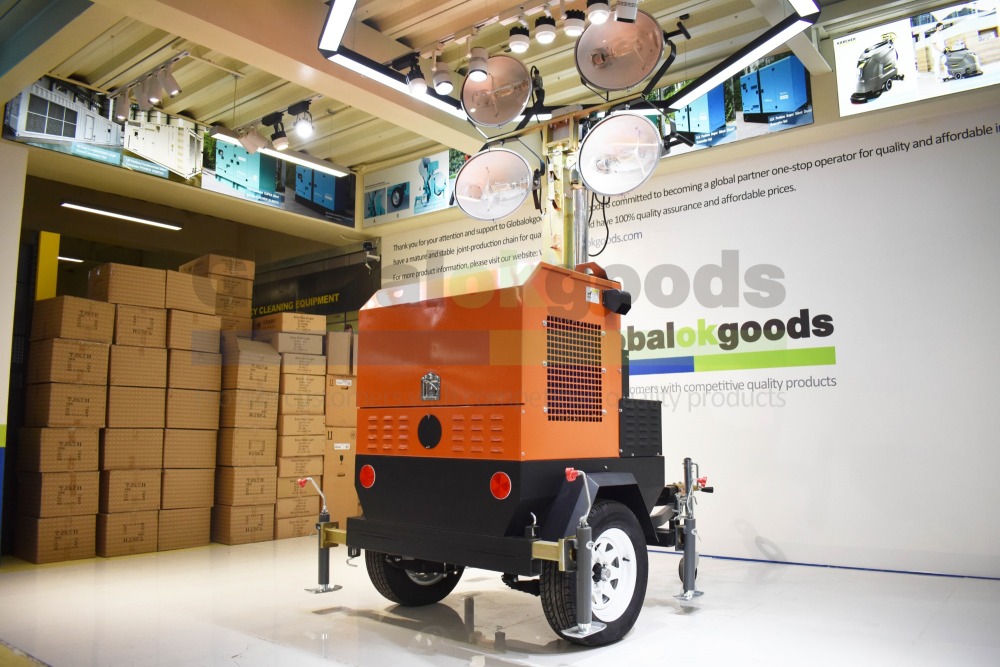

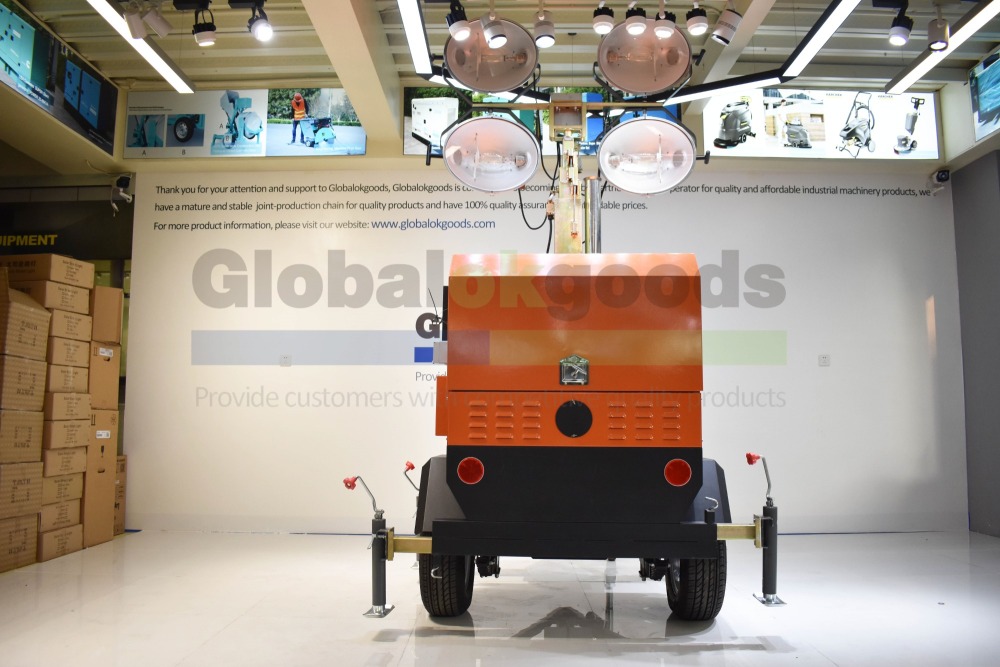

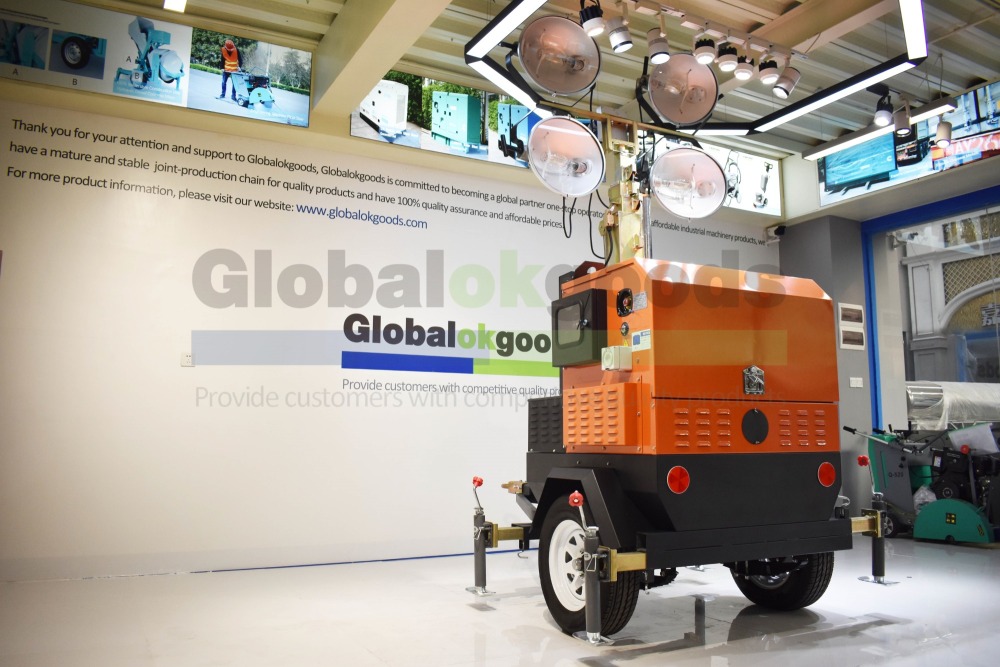

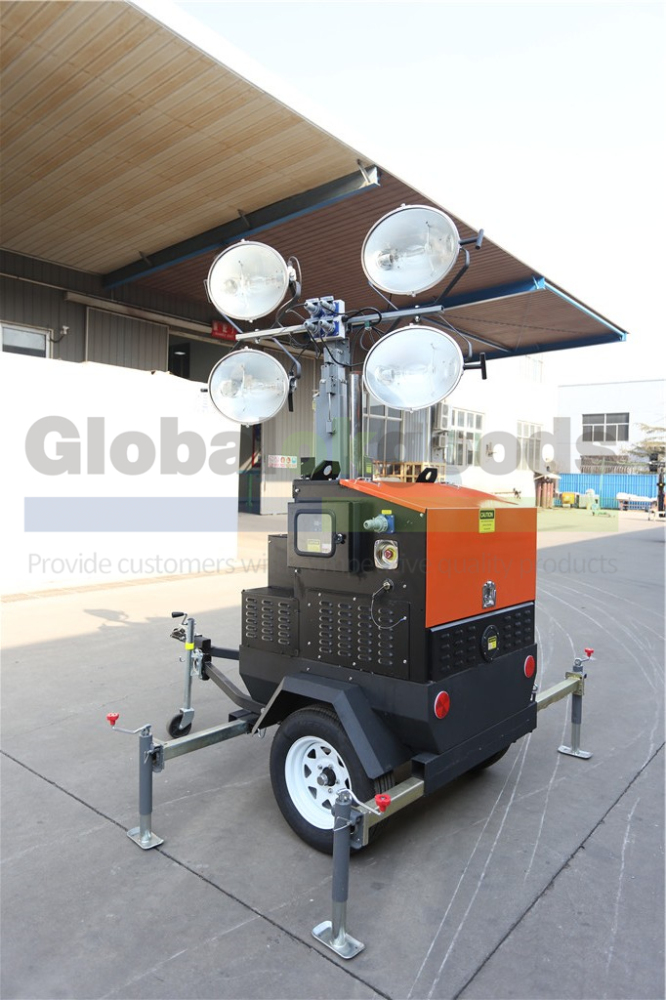

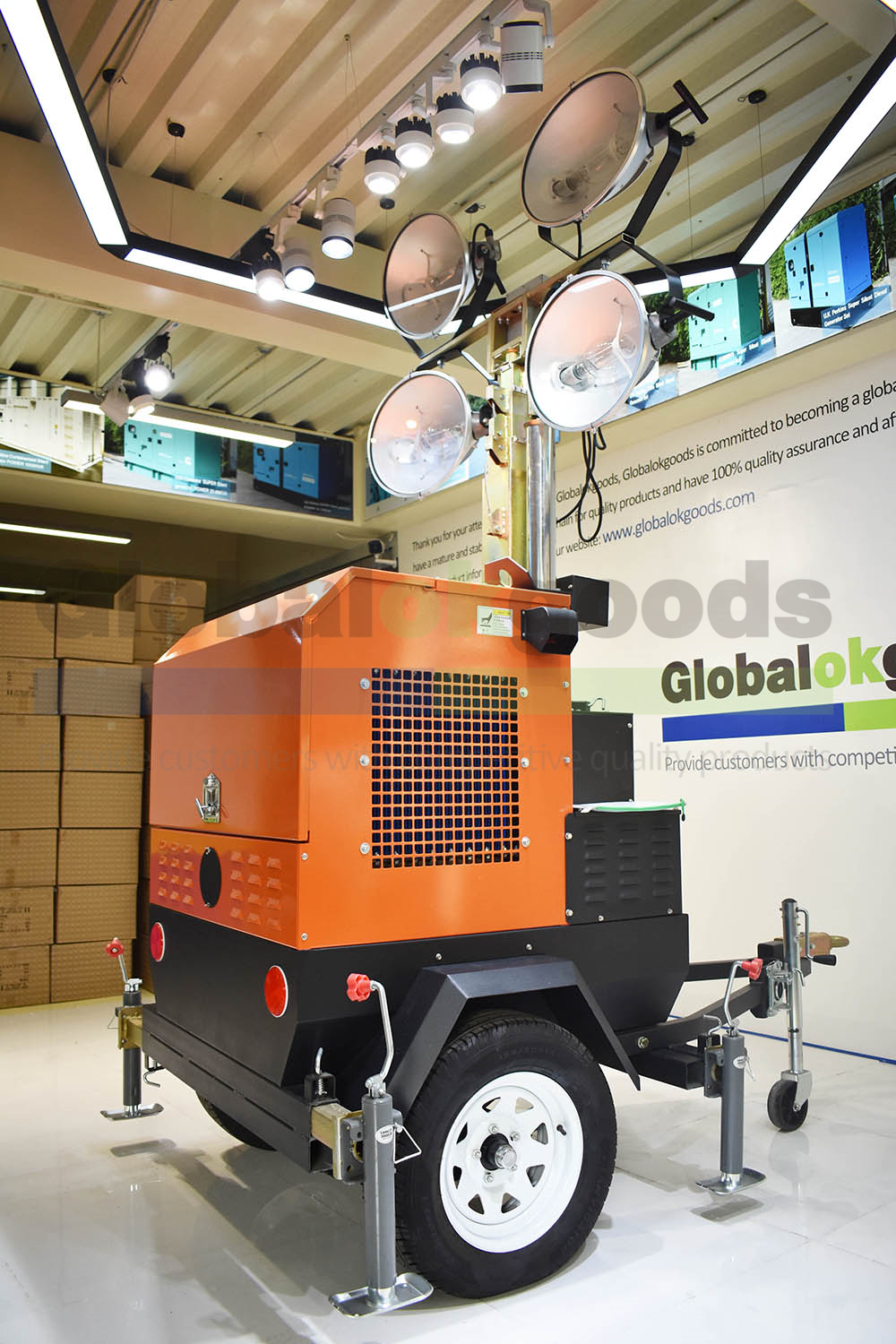

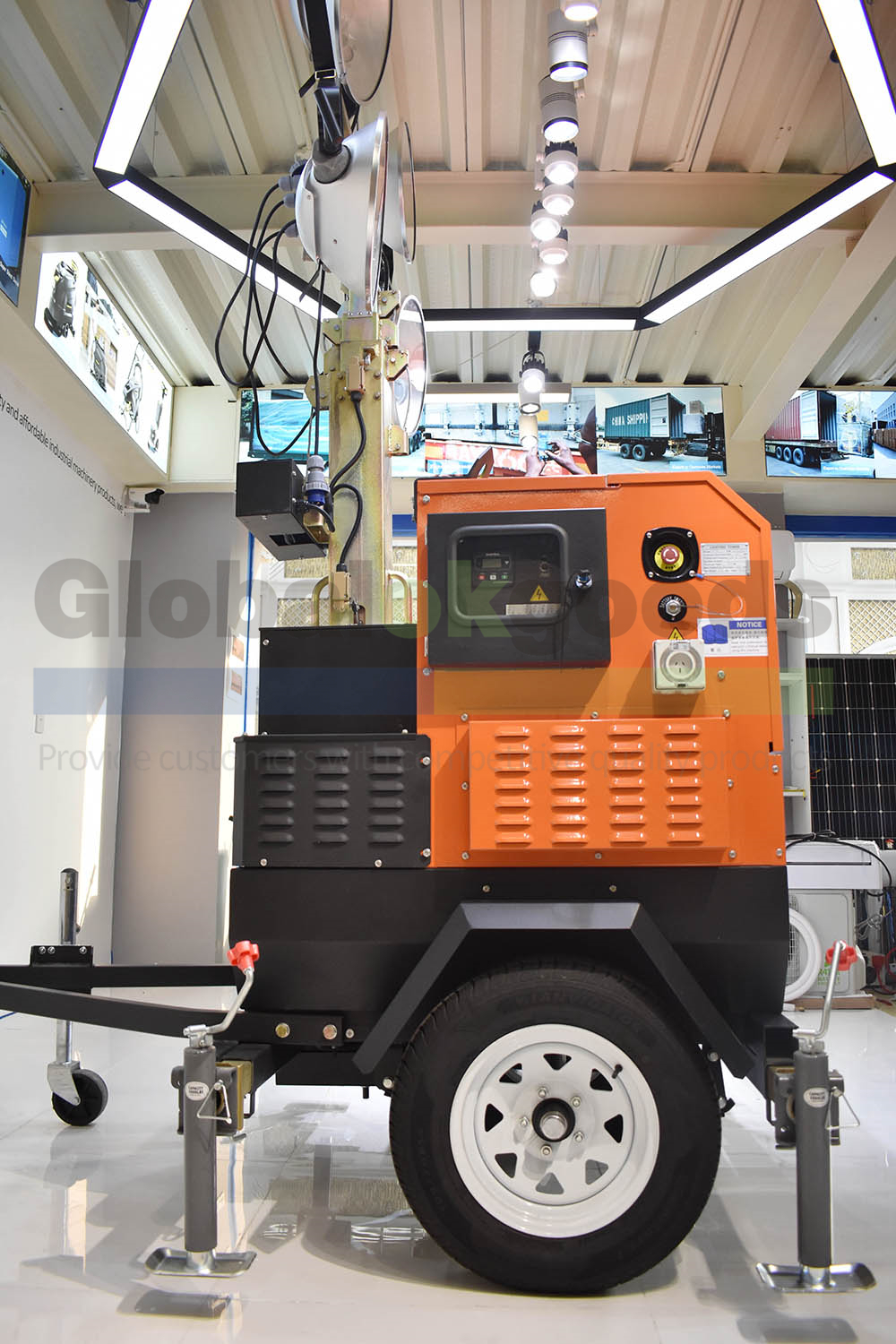

| Basic Model |
I9T4000 |
| Dimensions |
Length |
2420mm |
| Width |
1360mm |
| Height |
3050mm |
| Loading container Height |
2600 |

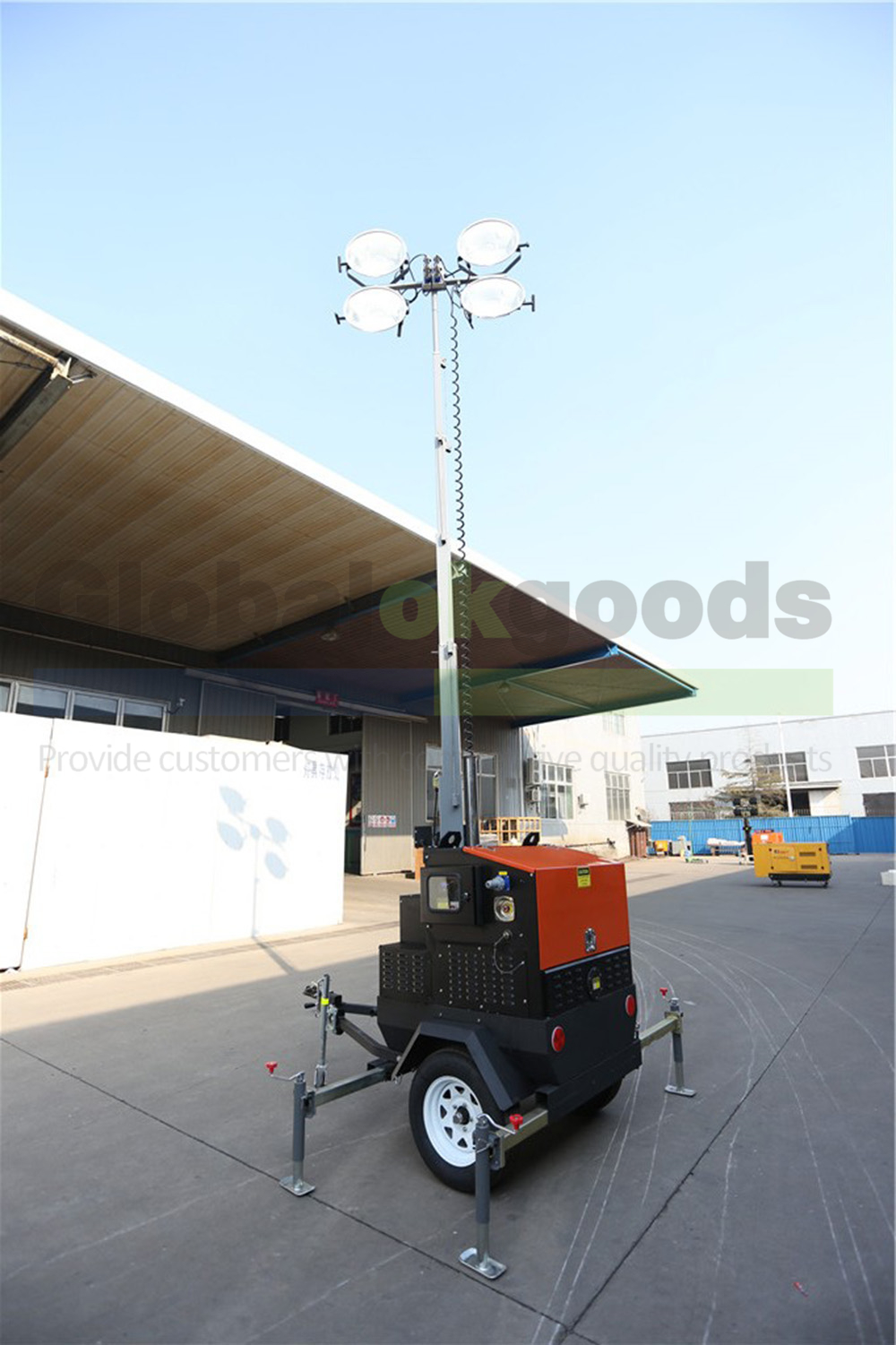

| Full extending Height |
9m |
| Genset power（1500/1800rpm-KW） |
6.5/7.5 |
| Gross weight |
850kg |

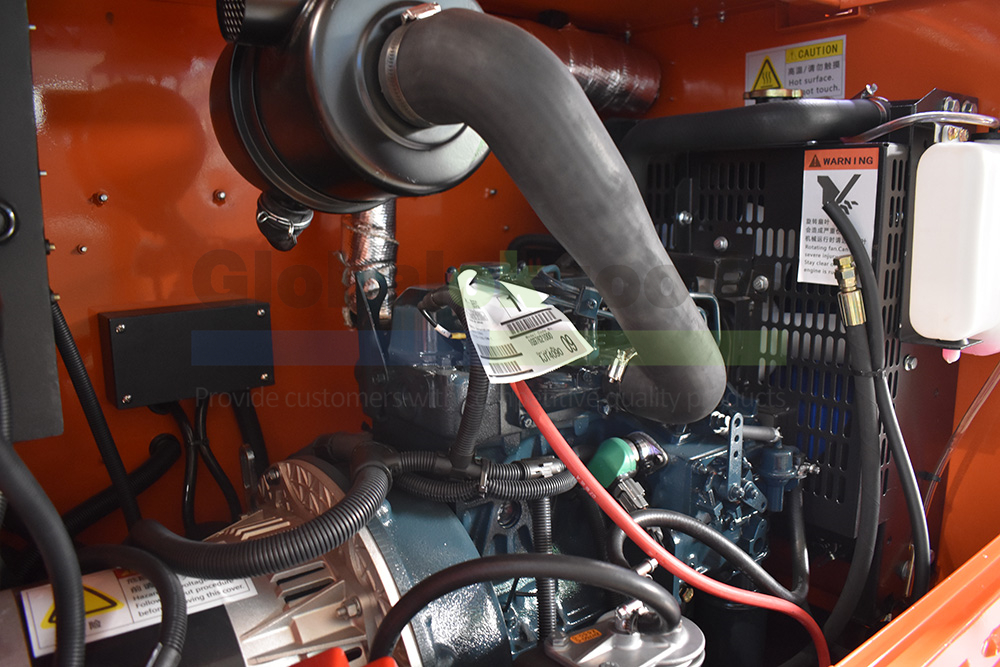

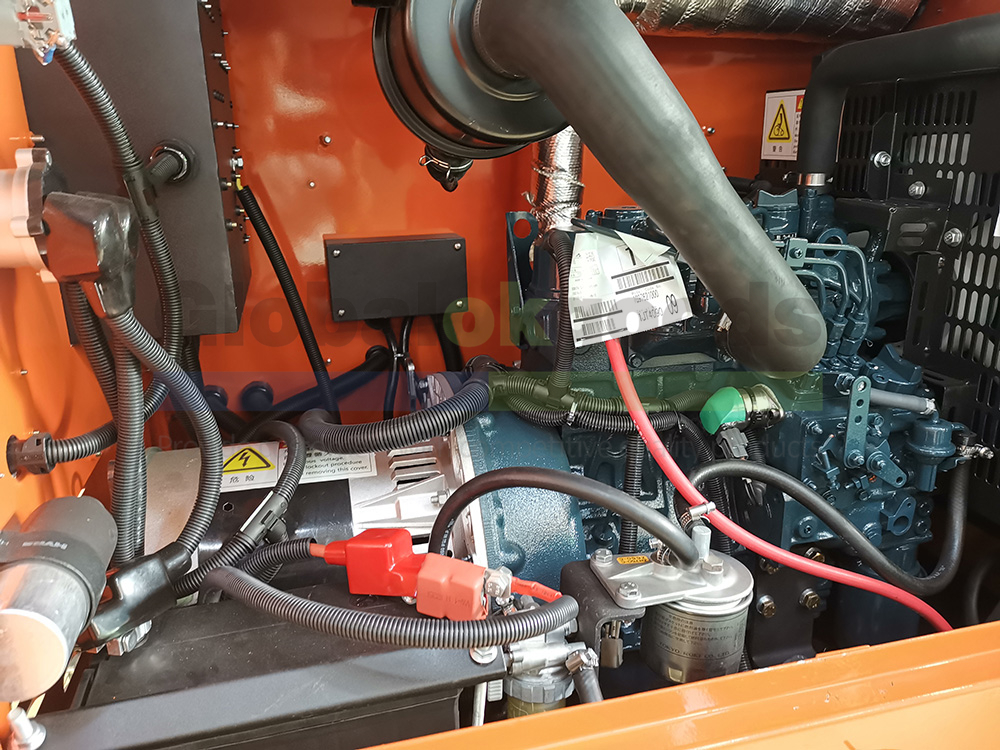

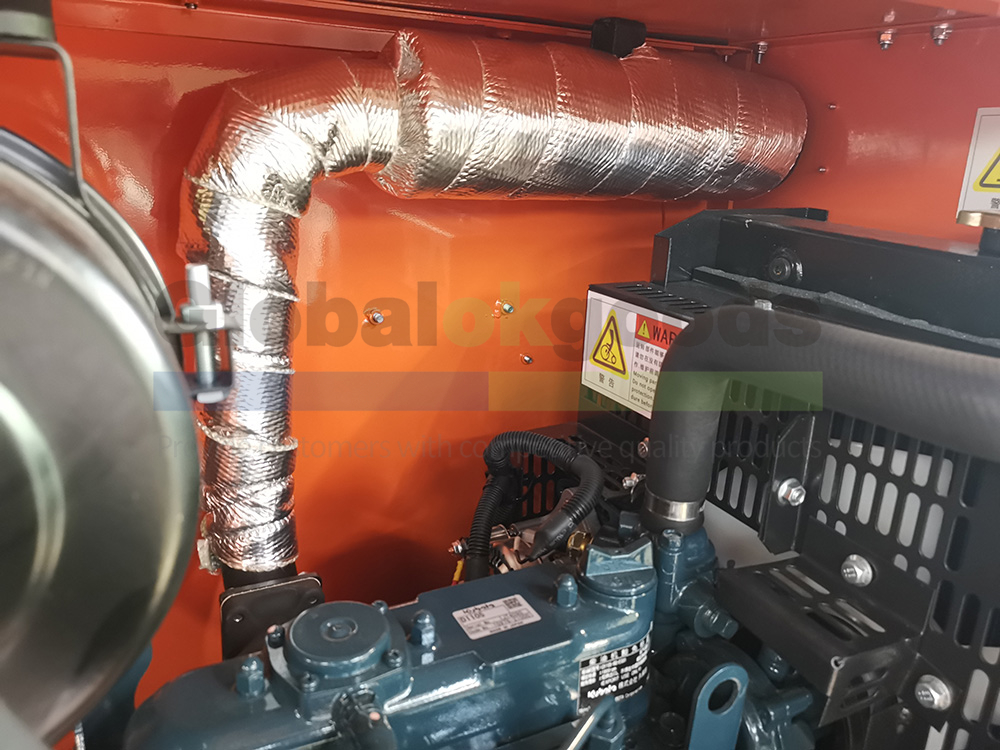

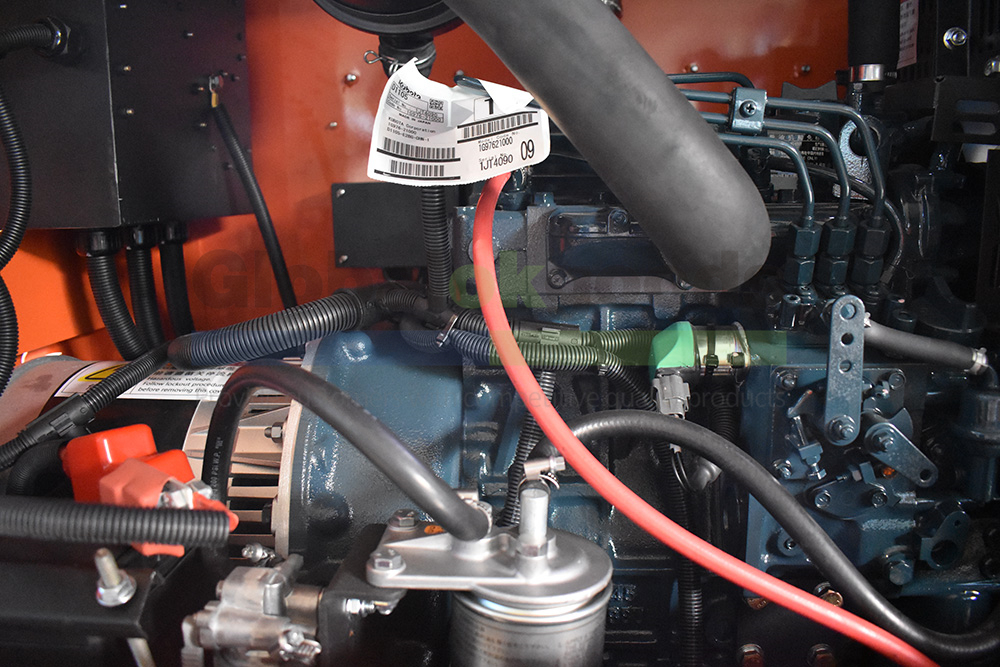

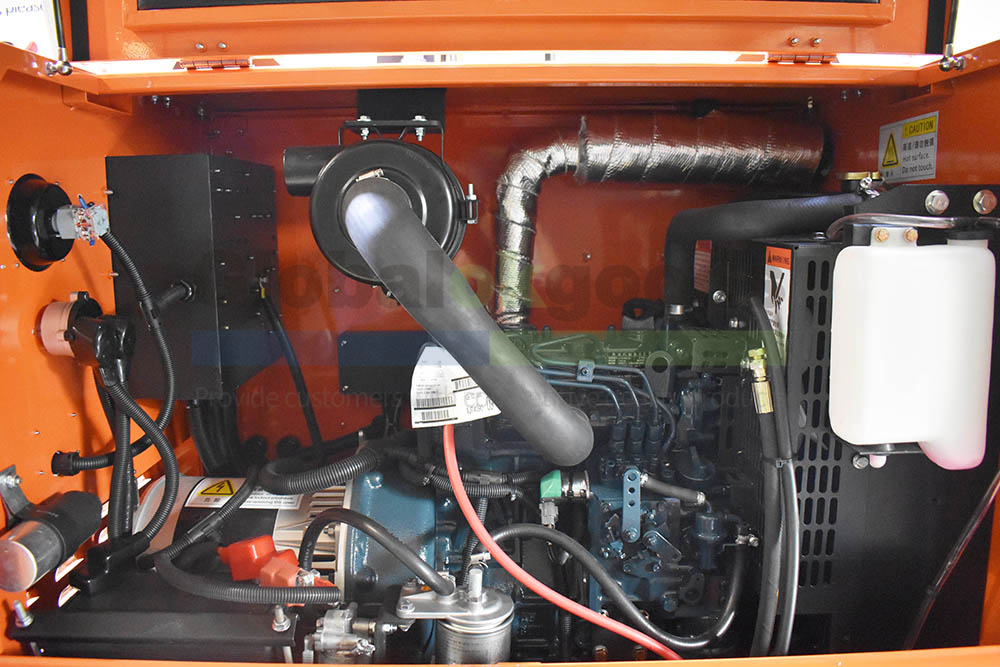

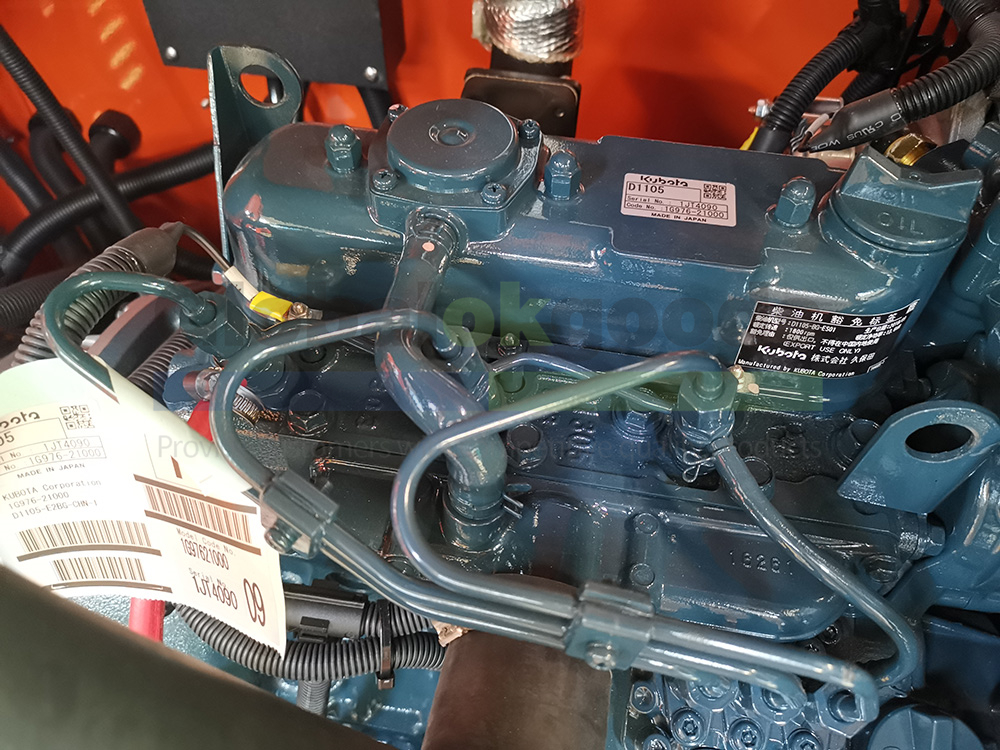

| Engine |
Model |

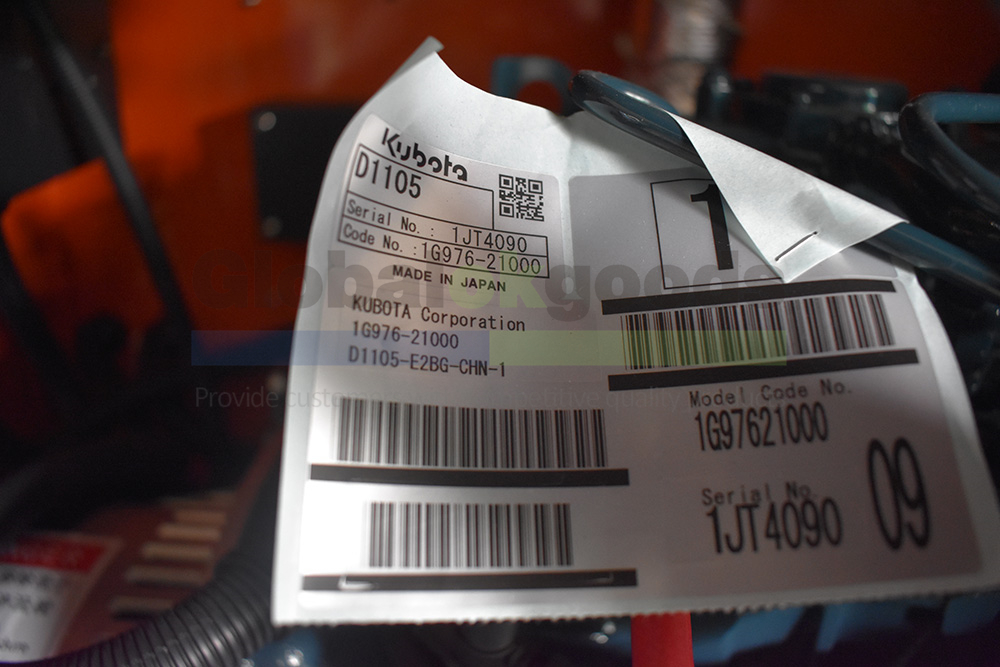

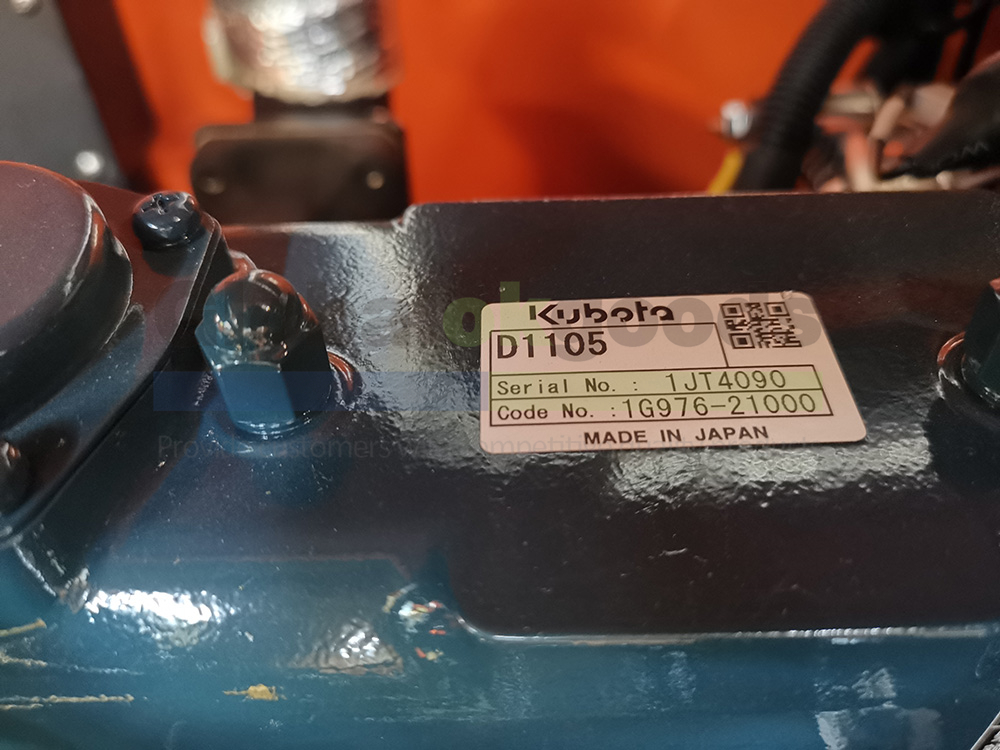

D1105(Kubota） |
| Speed(rpm) |
1500/1800 |
| Number of cylinders |
3 |
| Engine characters |
4 cycles, Water-cooled diesel |
| Combustion System |
E-TVS |
| Engine aspiration |
Naturally aspirated |
| Emission level (60Hz) |
Regular |

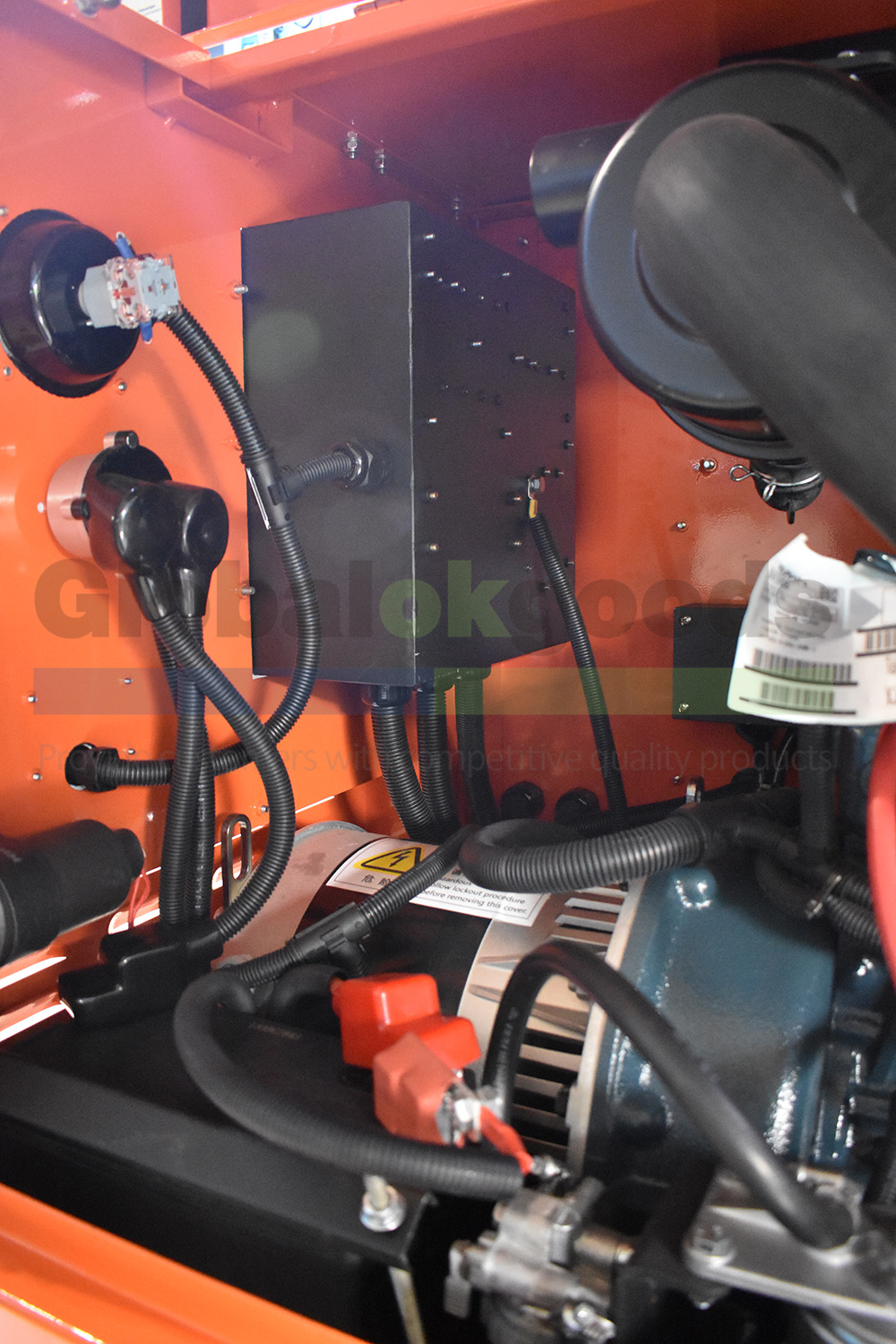

| Alternator |
Model |
Mecc alte LT3N-130/4 |
| Frequency (HZ) |
50/60 |
| Rating voltage ( 50Hz) |
220/110V (50HZ), 240/120 (60HZ) AC |
| Alternator insulation |
Class H |
| Alternator protection grade |
IP23 |

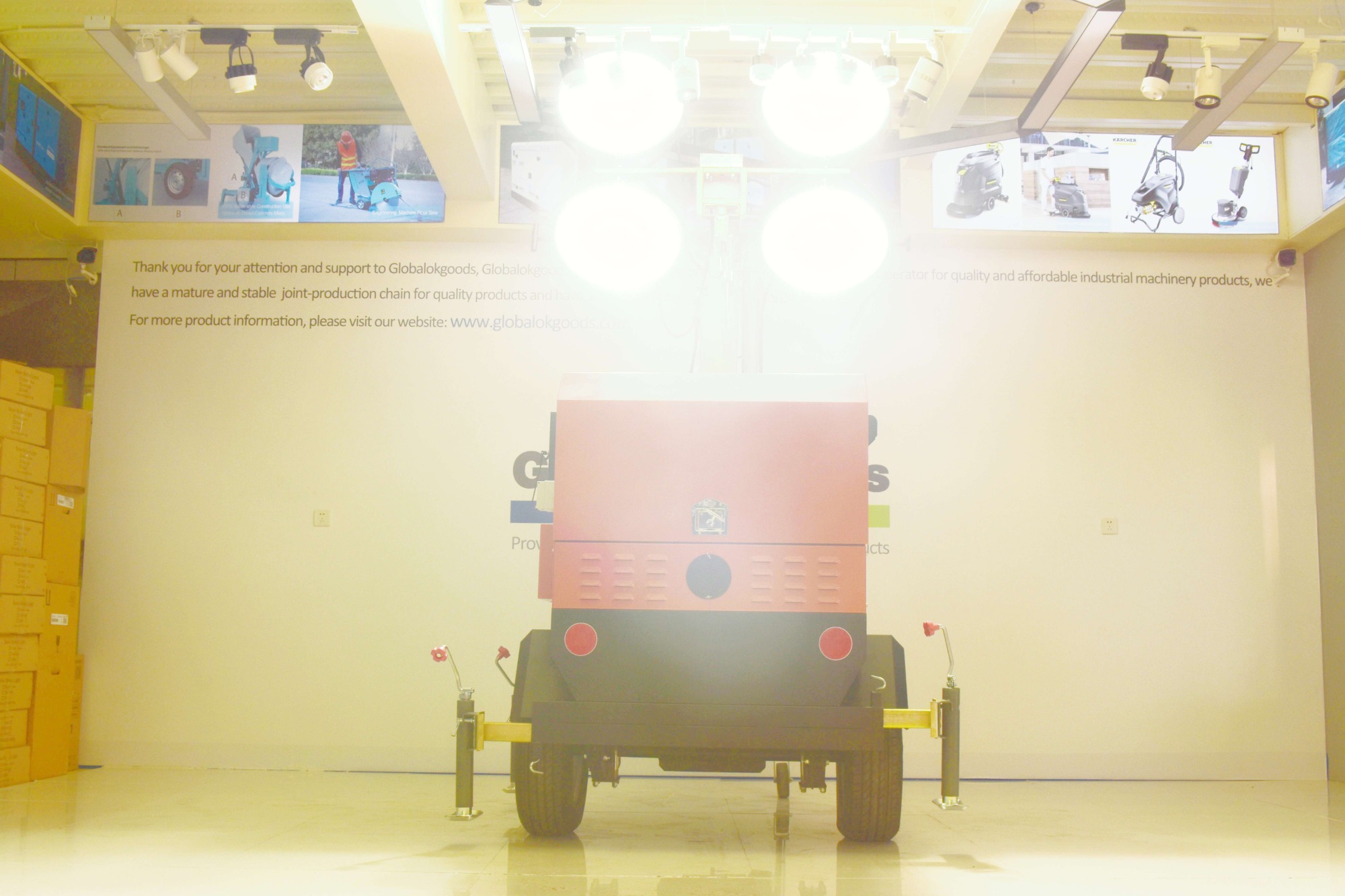

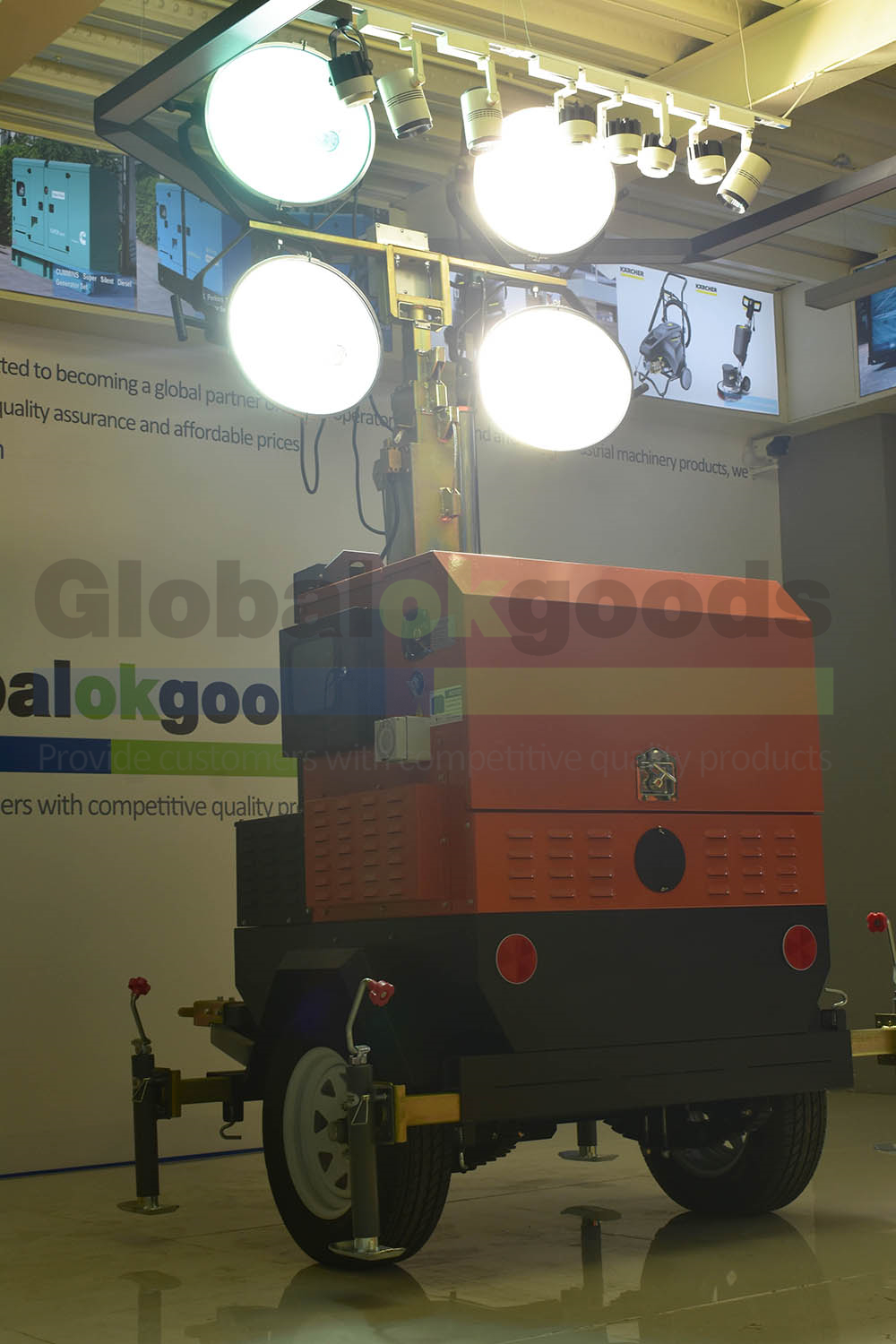

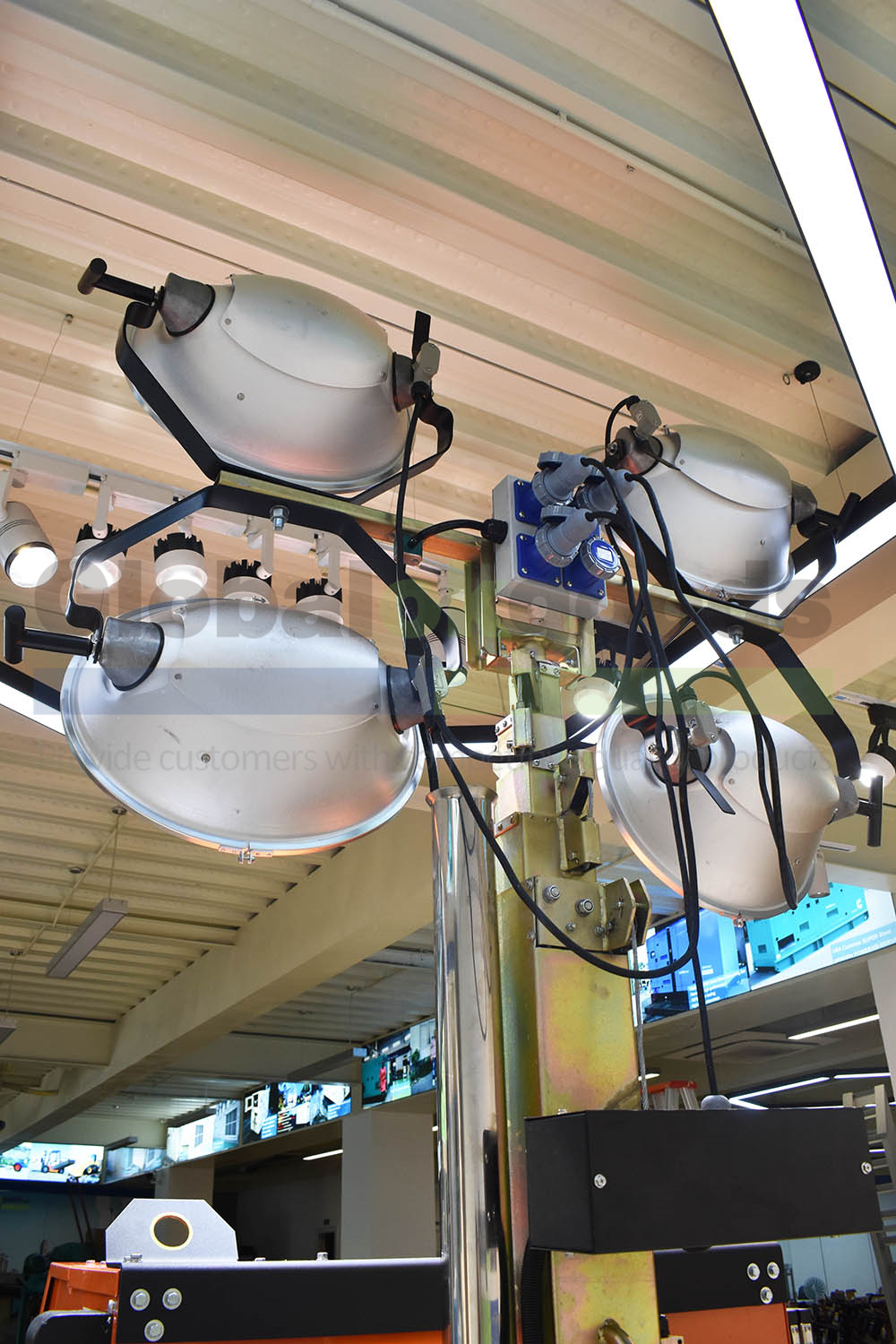

| Mast & Lights |
Type of Lights |
Regular metal halide |
| Light's fixture |
Oval |
| Luminous flux (LM) |
110000 LM/light |
| Number & power of lights |
4×1000W |
| Number of mast sections |
6 |
| Mast extension |
Electrical(Vertical, 3500 lb winch) |
| Mast rotation |
359° Manual rotation with self locking |
| Light tilt |
Manually |

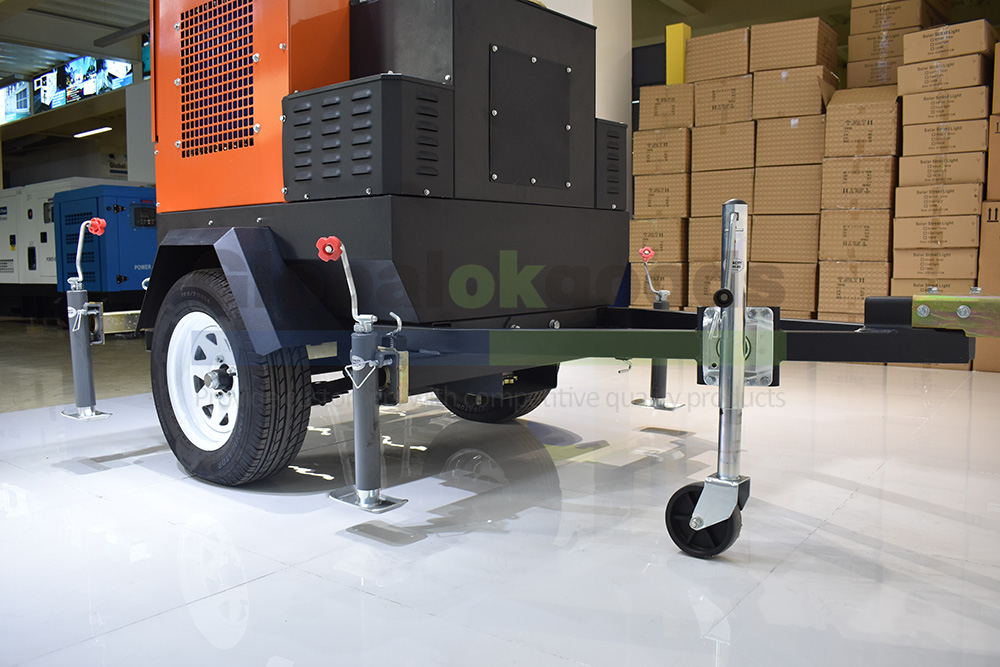

| Trailer |
Trailer suspension & axle with brakes |
Leaf springs axle without brake |
| Tow bar |

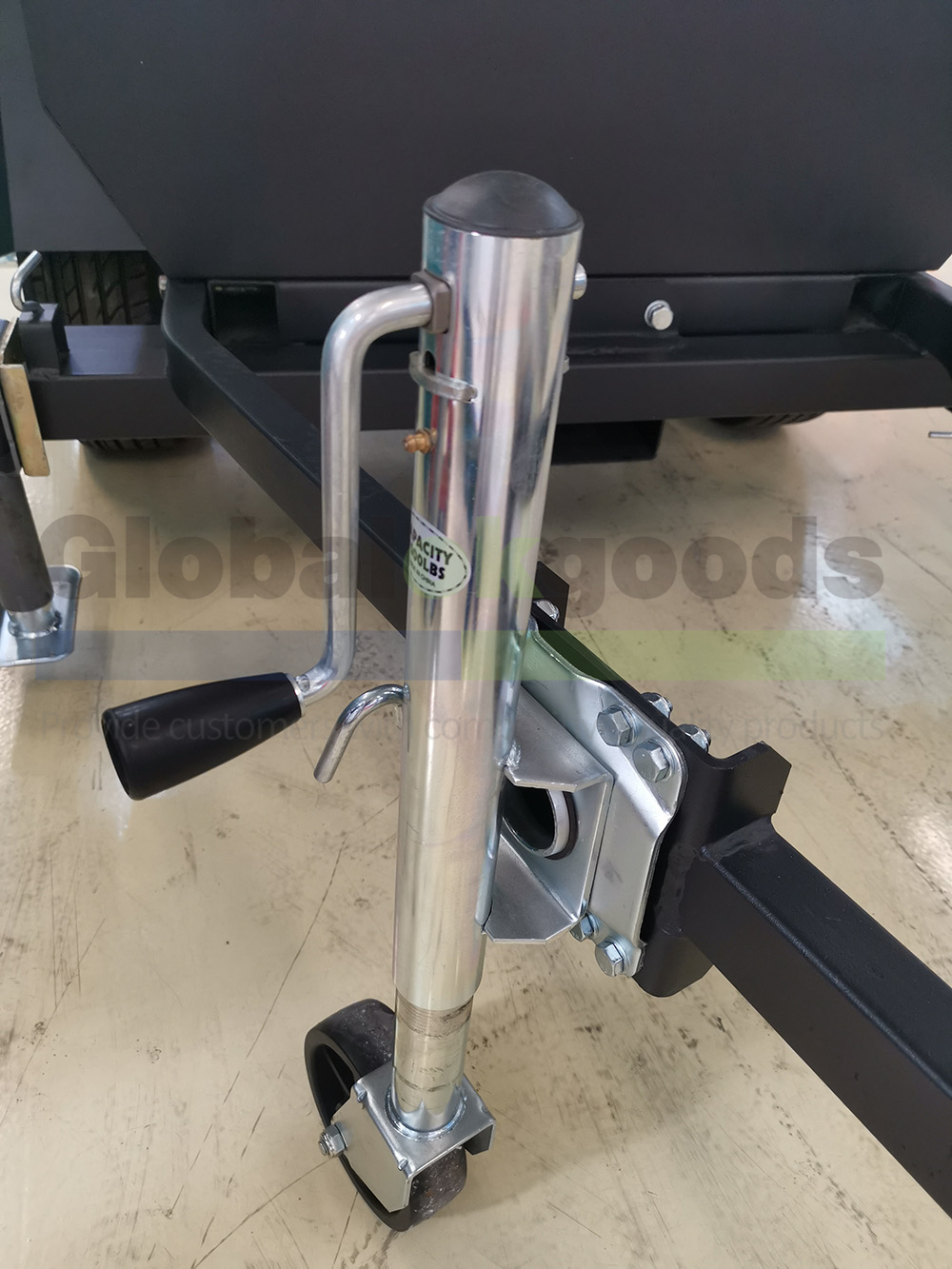

A style frame with a supporting jack |

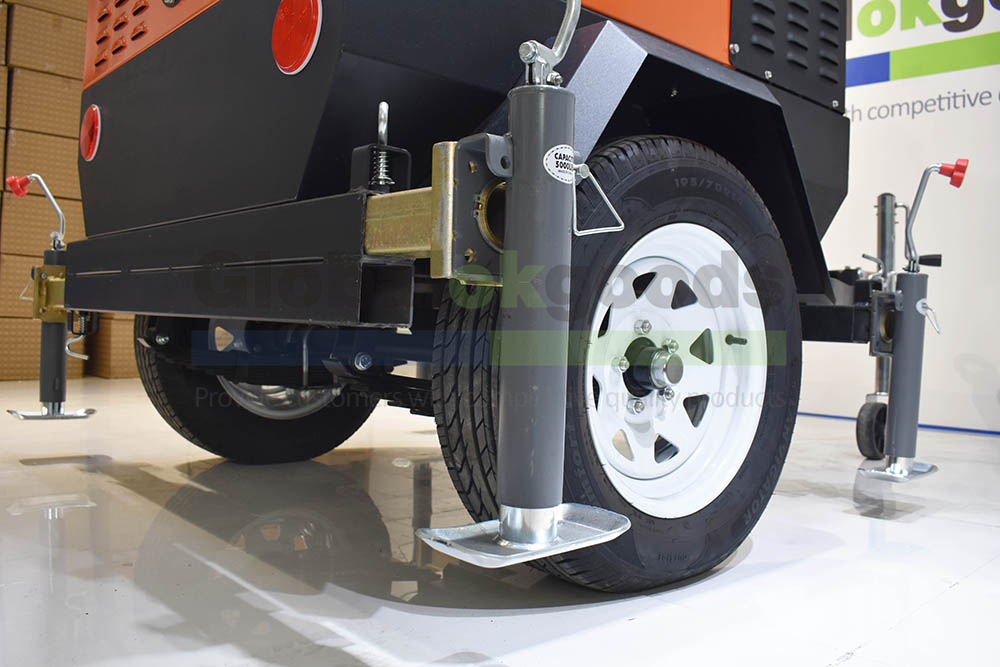

| Stabilizing legs & number |
4 pcs drawable bar with manual jacks |
| Wheel's rim size & tires |
14" Sunraysia rim with regular tires |
| Tow adapter |

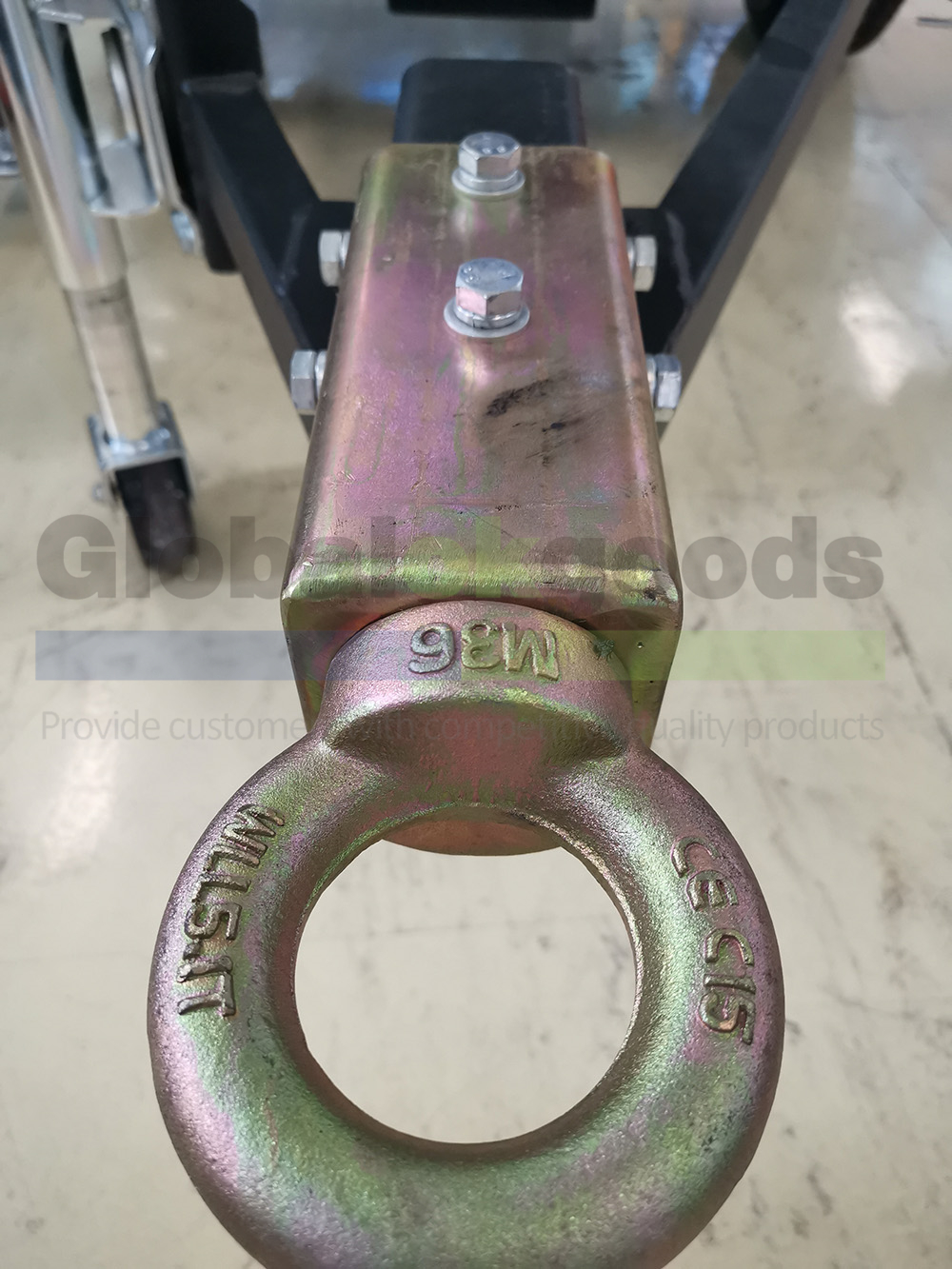

2" ball coupler or 3" pintle ring |
| Tail lights |
Complex tail lights |
| Max towing speed |
80km/h |
| Additional Features |
Fuel tank Type |
Rotational moulding plastic |
| Fuel tank capacity |
68 liters |
| Operating hours with full load |
28/23 hours |

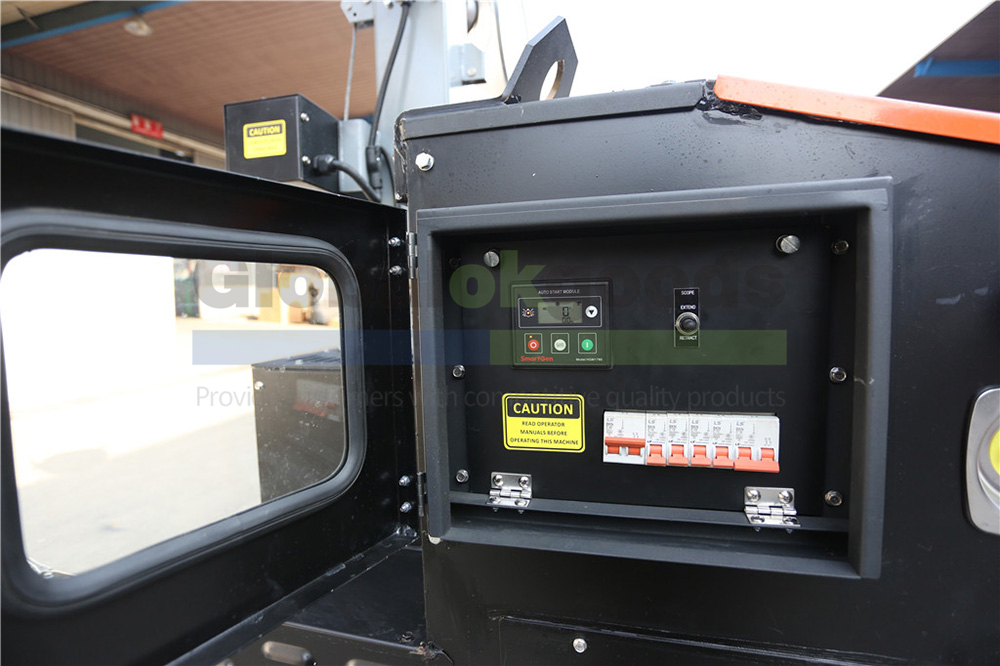

| Generator starting type or controler |
HGM1780（SMARTGEN） |

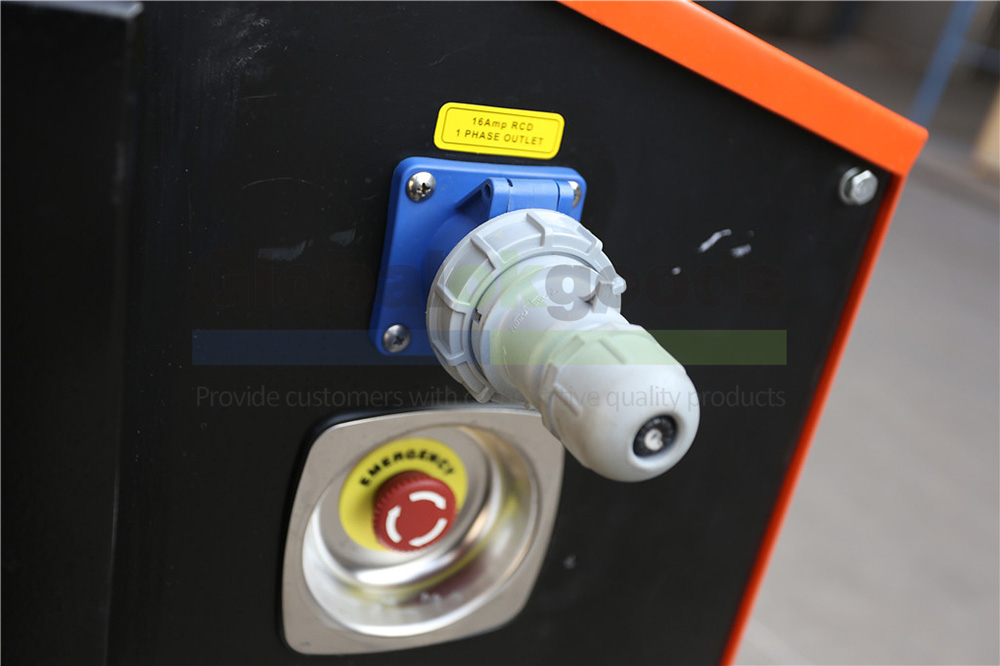

| Power outlet sockets |
1 unit of Euro standard 16A/220V single phase power outlet socket |
| Max. against wind when fully extended |
17.5m/s |
| Acoustic pressure |
72dB(A) at 7 meters away |

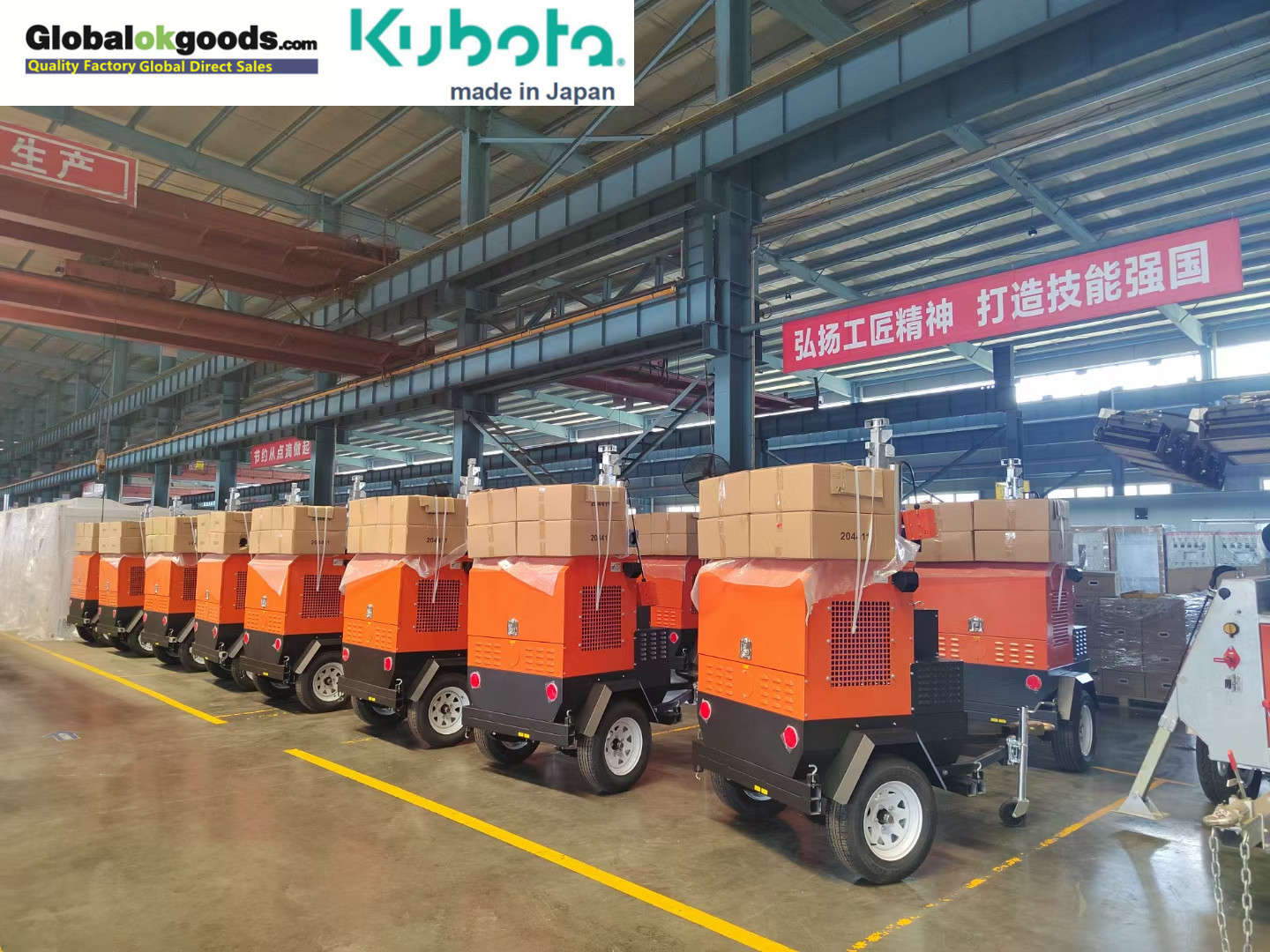

| Max. # of units loading in 40' high container (Some components would be detached) |
16 |
