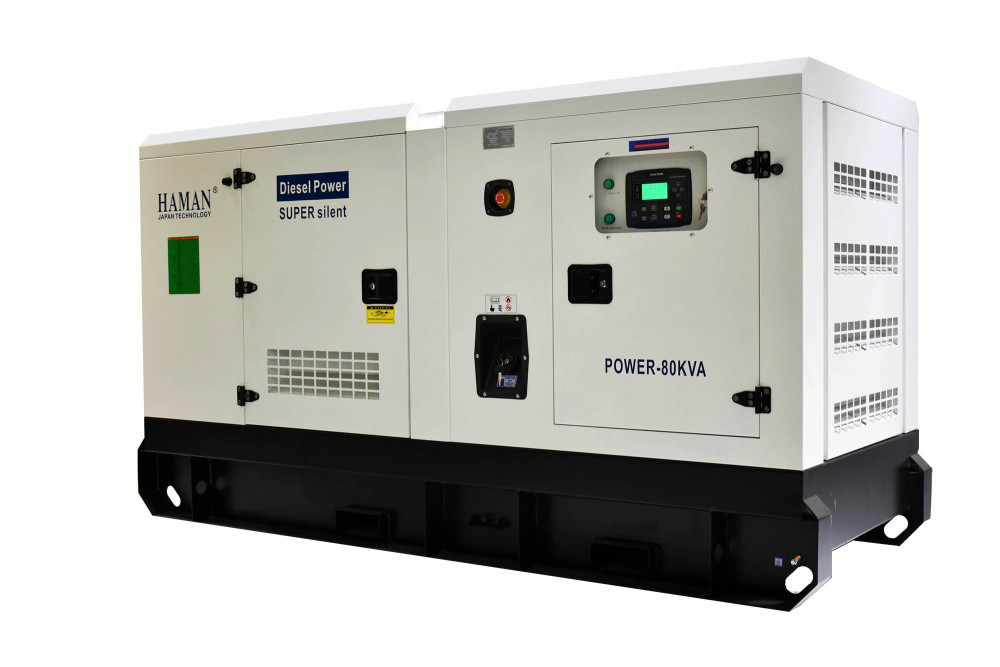

POWER:80KVA Japan HAMANディーゼル発電機 SUPER SILENT Diesel Generator

0.0 (0)

0 Sold

$7,800.00 ~~$16,900.00~~

Equipped with YANMAR technology four cylinders engine, powerful and low fuel consumption. With 60°C radiator, even if you use it in high-temperature area, it still maintain great performance. U.K. Stamford technologh high-quality brushless alternator, 100

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

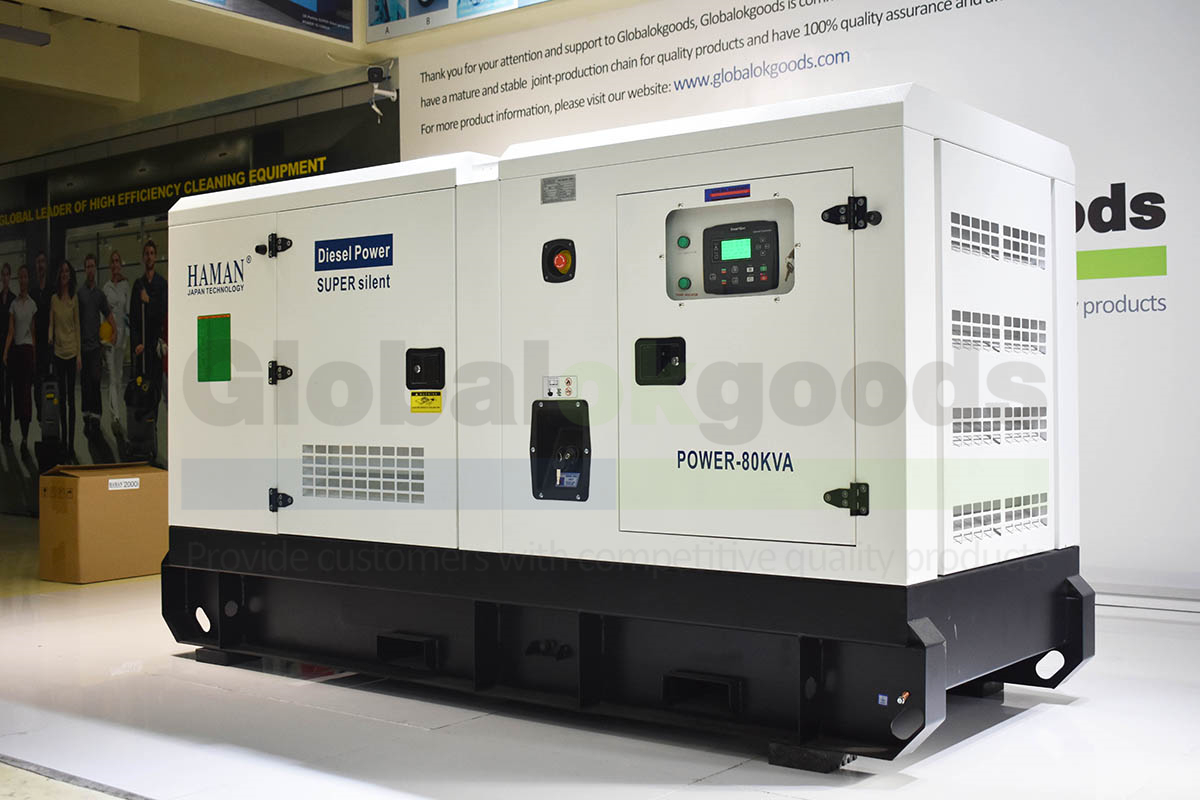

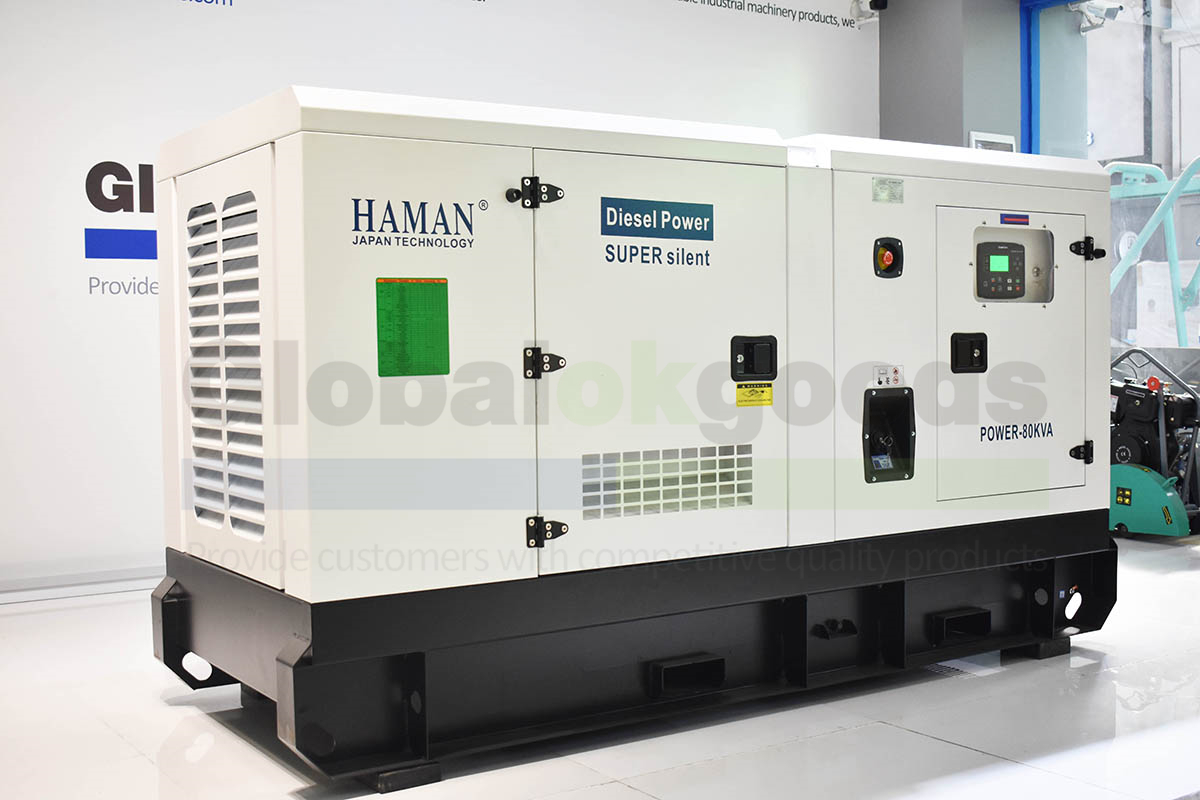

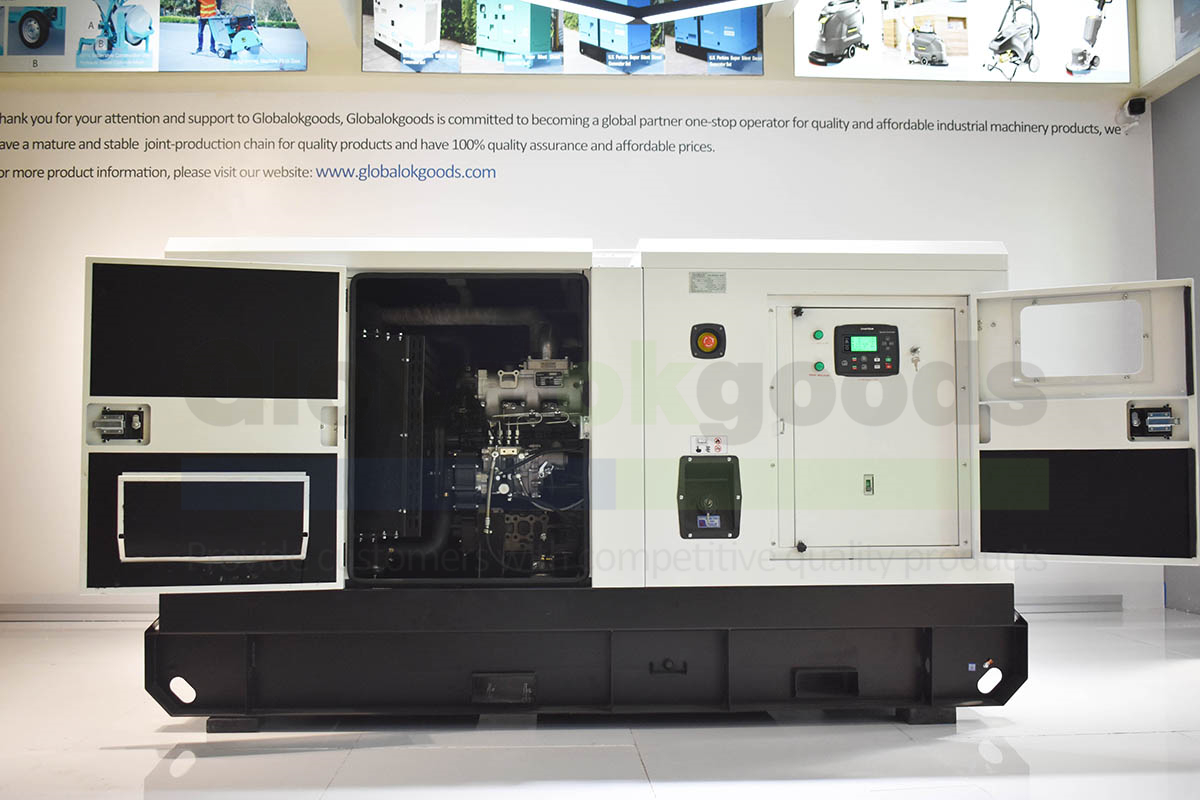

JAPAN HAMAN SUPER SILENT Diesel Generator, equipped with YANMAR technology four cylinders engine, powerful and low fuel consumption. With 60°C radiator, even if you use it in high-temperature area, it still maintain great performance. U.K. Stamford technologh high-quality brushless alternator, 100% power, all cooper wire.
Durable and long-lasting HAMAN generator, affordable and reasonable, is a super cost-effective genset, welcome to contact and order.

Porduct Specification

Generator Set Specification
Model	HM-80TA3
Prime Power	80KVA
Standby Power	88KVA
Voltage	400/230v(voltage can be customized)
Frequency	50/60HZ
Rated Current(A)
Rated Speed	1500

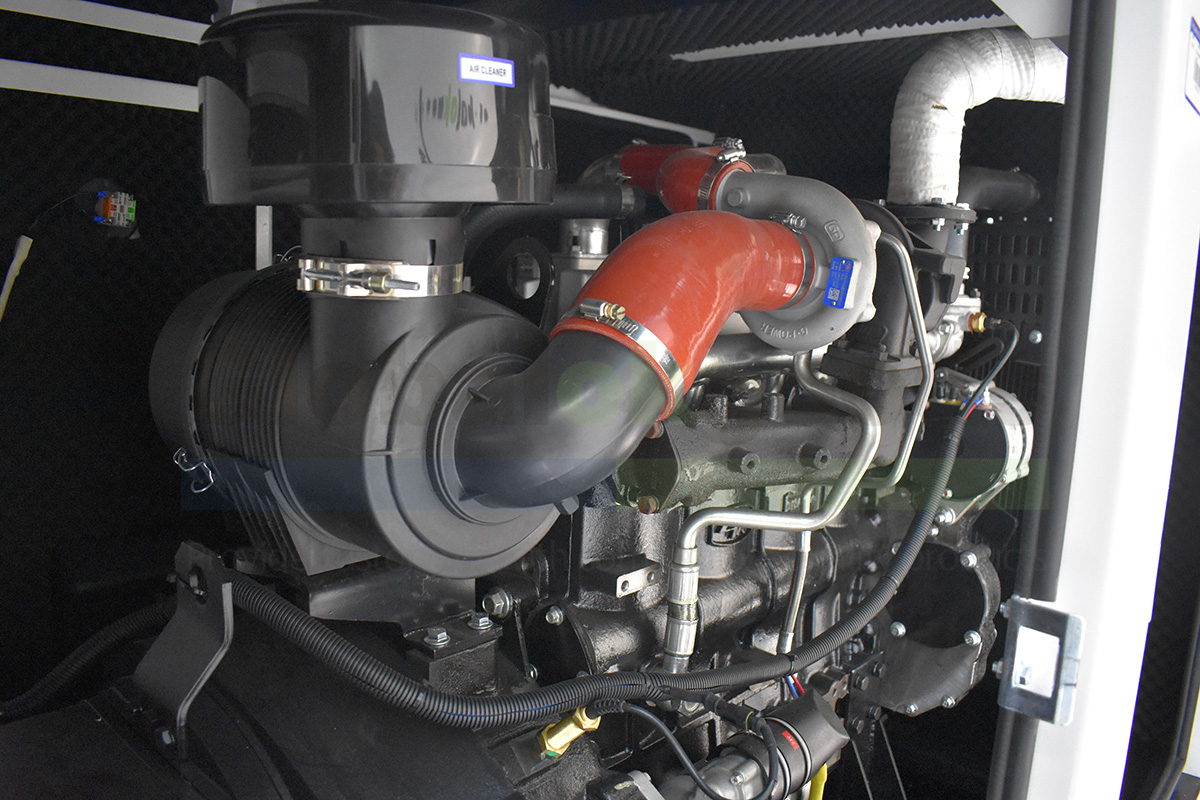

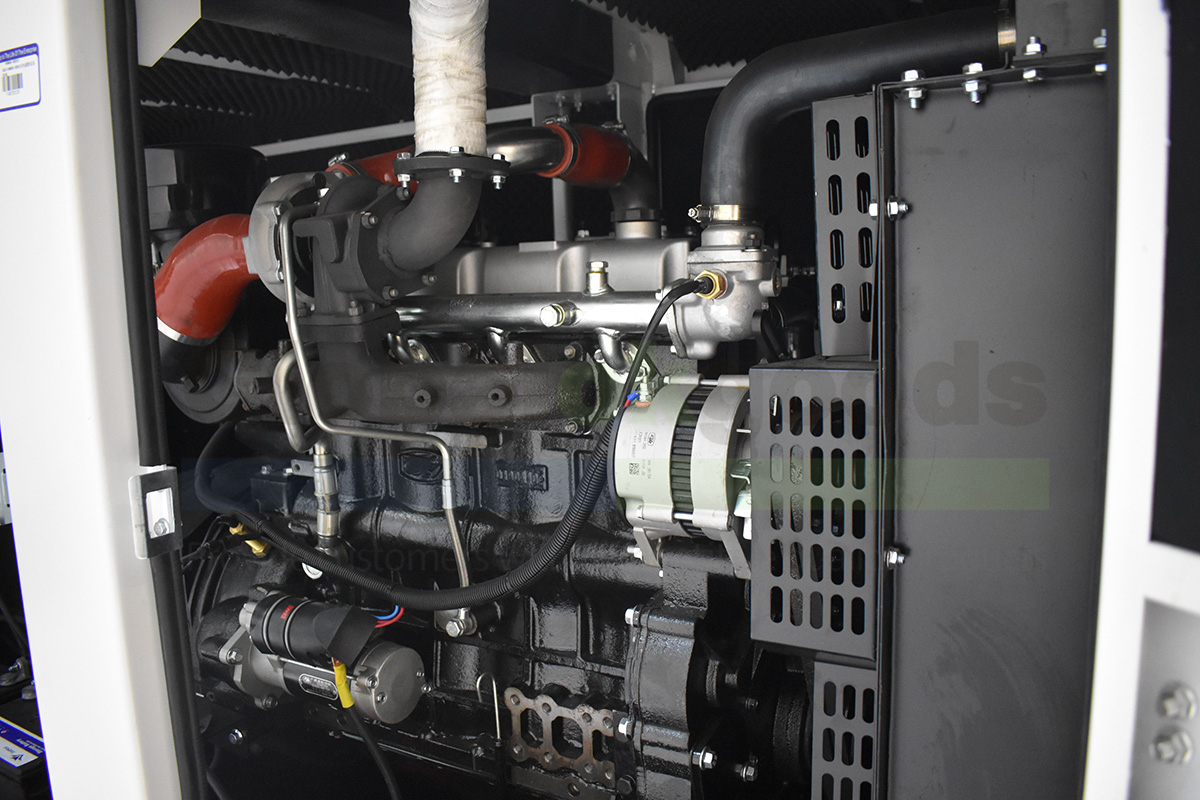

With Diesel Engine
Brand&model	HMLR4M3L-D
Engine Type	4 Cylinders, in line, water cooled
Prime Power	64KW
Bore*Stroke	110×125mm
Displacement	4.75L
Fuel Consumption at 100% Load	228 g/KW.H
Working Mode	Natural aspiration
Starting system	12V Electric
Fuel Consumption(g/KW.H)	228

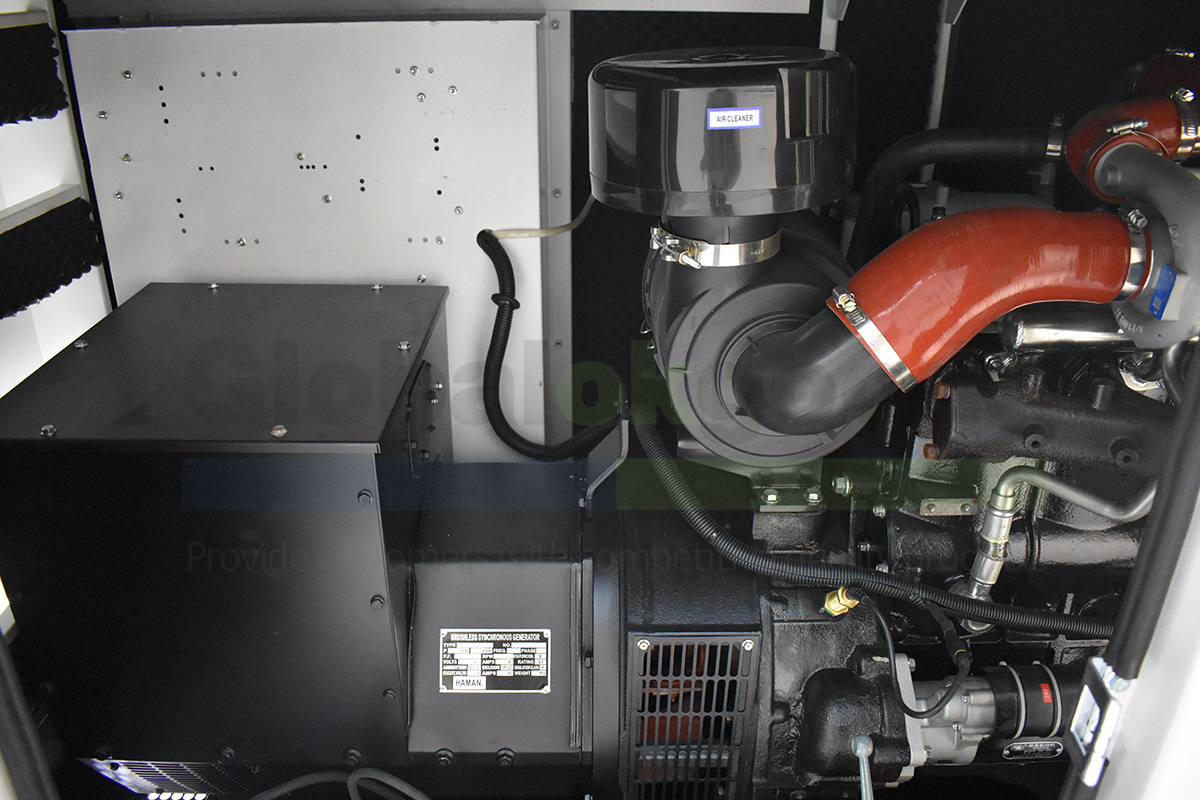

With Alternator
Optional Brands	Leroy Somer/HAMAN/Stamford
Alternator Model	184H
Power factor	0.8
Loop Mode	Three phase four line
Insulation Grade	H
Excitation Type	Brushless self-excited constant voltage (AVR)
Pole No.	4
With Genset

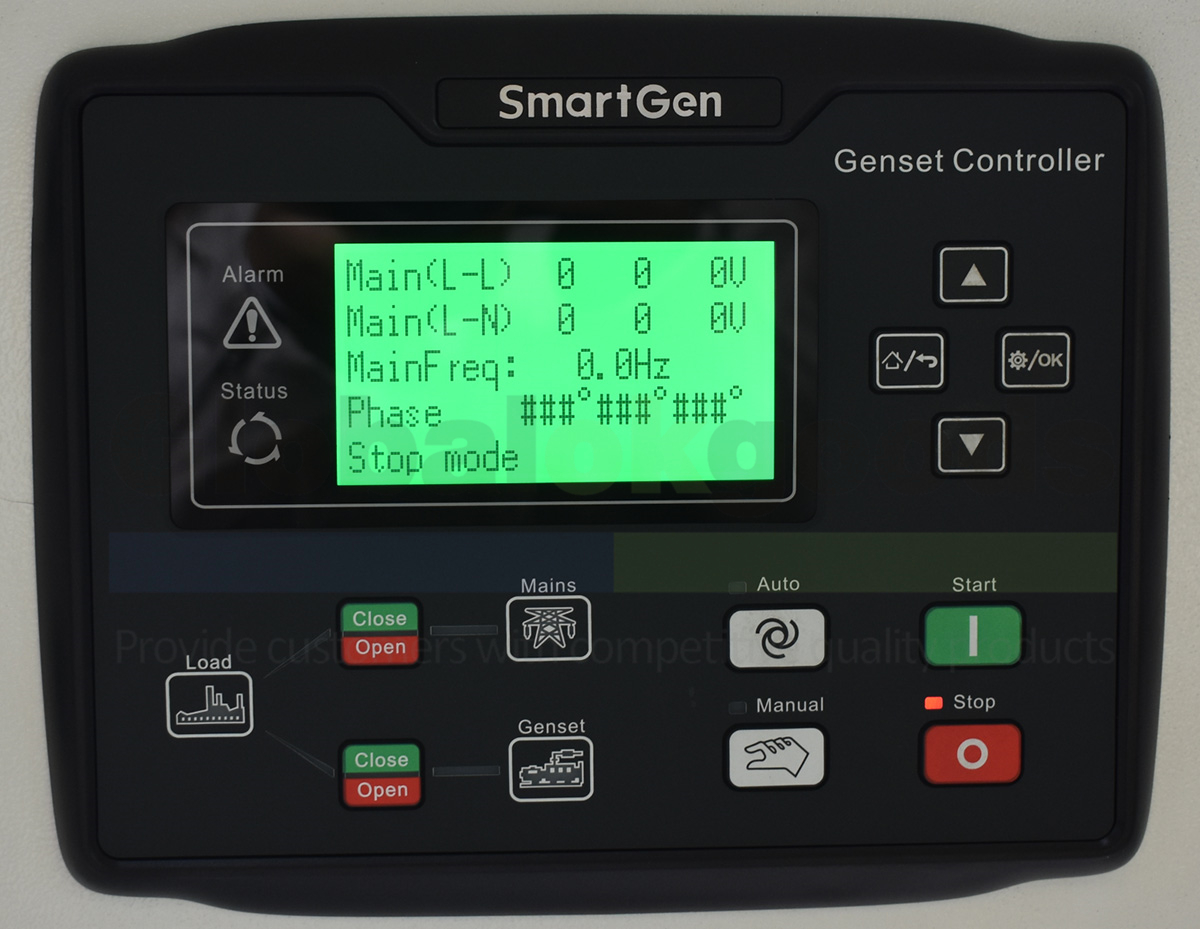

Control System	Digital Controller
Output Voltage(V)	400/230
Noise Level db(A)7m	68
Fuel Tank Capacity(L)	300
Continous Running Time(h)	10
Overall Dimension(mm)	2680×1050×1450
Net Weight (Kg)	2480
