Principle:
The engines of tamping rammers connect with the crankcase. The torque generated by engine is transferred to crank gear through the centrifugal clutch, after decelerating, the torque is changed to up and down reciprocating motion. When setting the high-duty spring up and down, the strong impacting force is generated through the acting force both of up and down motion and the machine’s weight.

Application:
Our tamping rammers are designed to deal with the tough site condition, well balanced and easy to operate. Their adaptability is extensive. They can be used to compact COHESIVE soils, such as clay, silt and roadbed with low water that heavy compactor couldn’t work, but also to compact sand, gravel, native cement and asphalt.

Our tamping rammers are specially suitable to be used in small repair jobs and in narrow confined areas, such as trenches and housing sites, and also be used in building, ground, yard, roadbed, foundations, around pipes, bridge pier etc. It can accomplish some tasks which the large & medium-sized machine can’t and the low force machine can’t.

We have many models to choose. Welcome to choose what you want. Choosing the right machines can increase productivity and improve construction quality.

Reliability

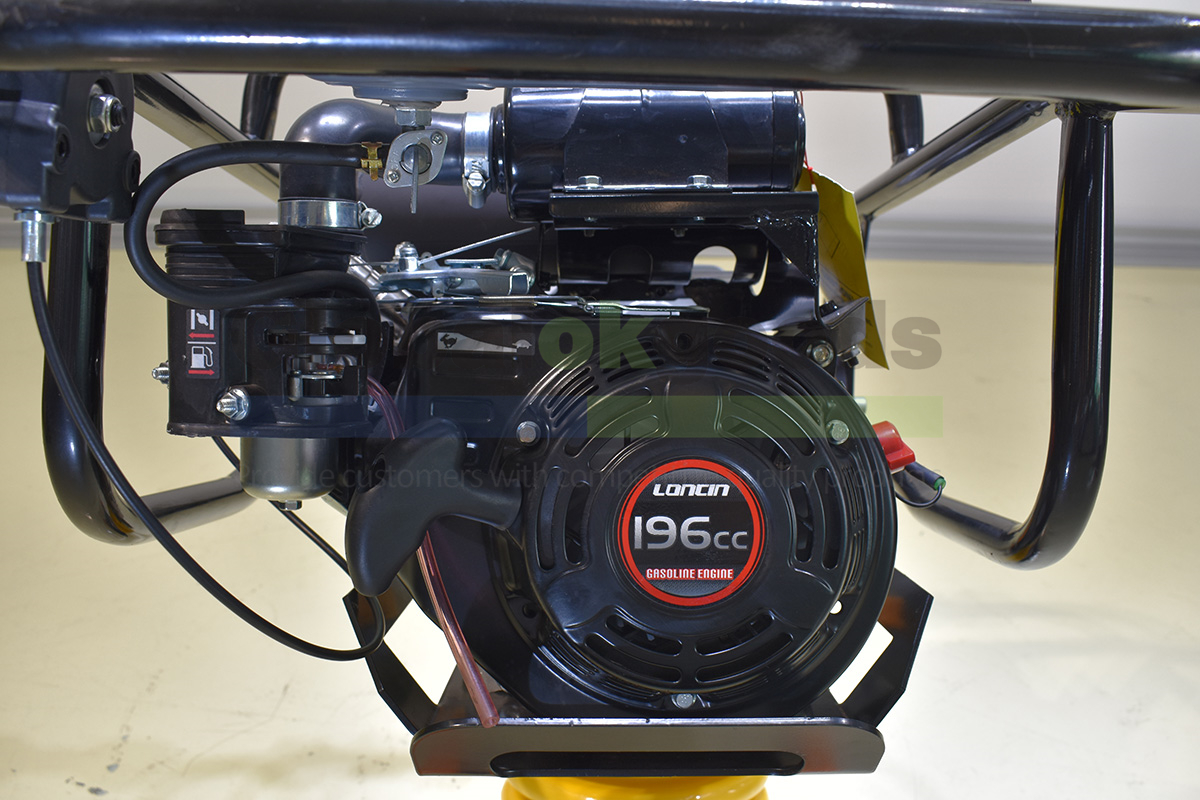

Designed specially for 4-stroke petrol engines to offer easy starting, low noise, low maintenance as well as low fuel consumption.

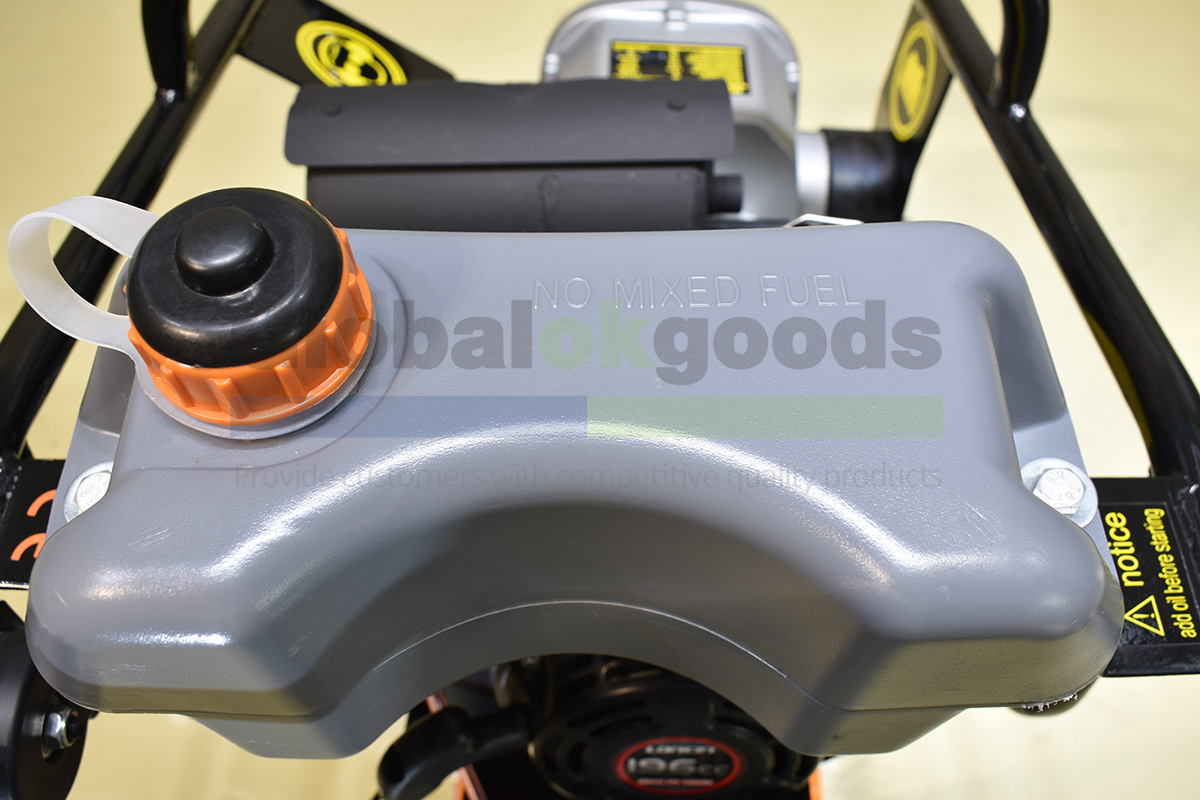

Plastic oil tank offers longer life and rust-free.
Dust-proof cover of the engine provided needed protection of the power system.

New design
Rammer foot made through the mould once plasticity forming, offers longer life and prevention of decay.
Throttle lever using new design and material to extend usage life with smooth operation.
A foot hook is added to be more convenient for the operators.

Easy transportation

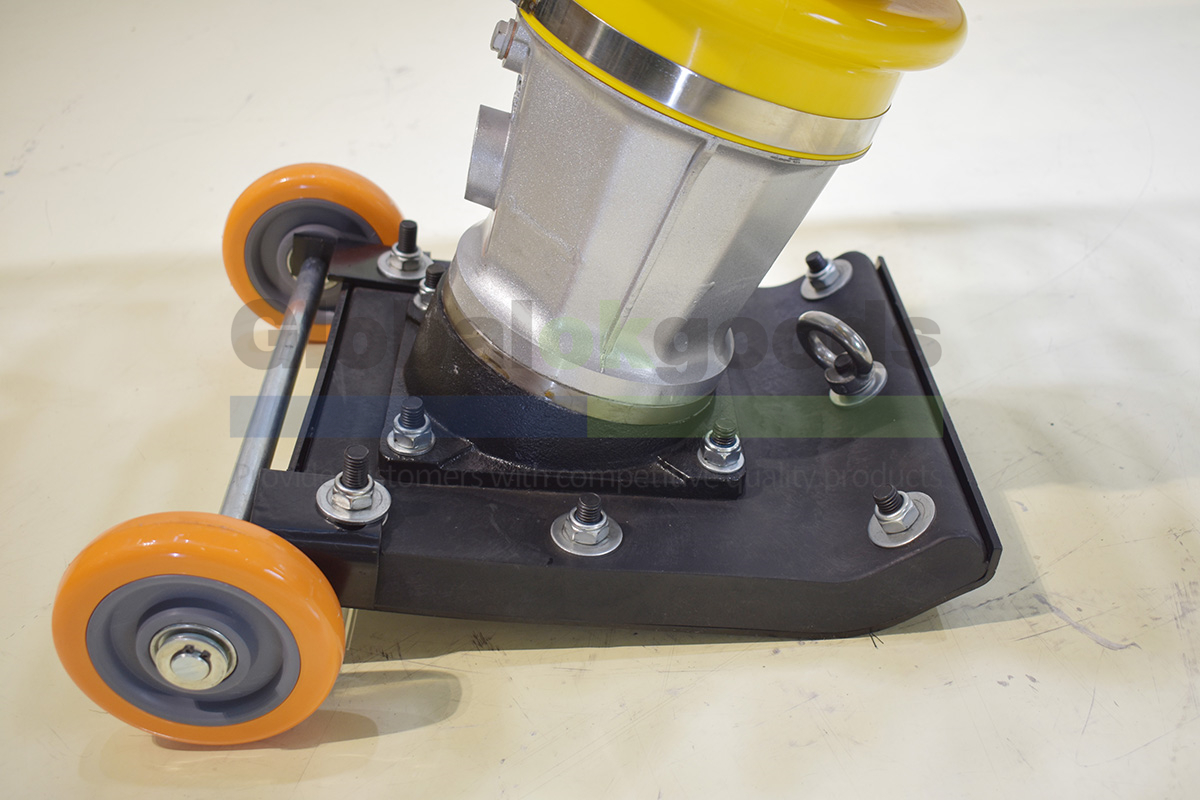

Build in wheels(optional item) for easy transportation.

Comfortable operation

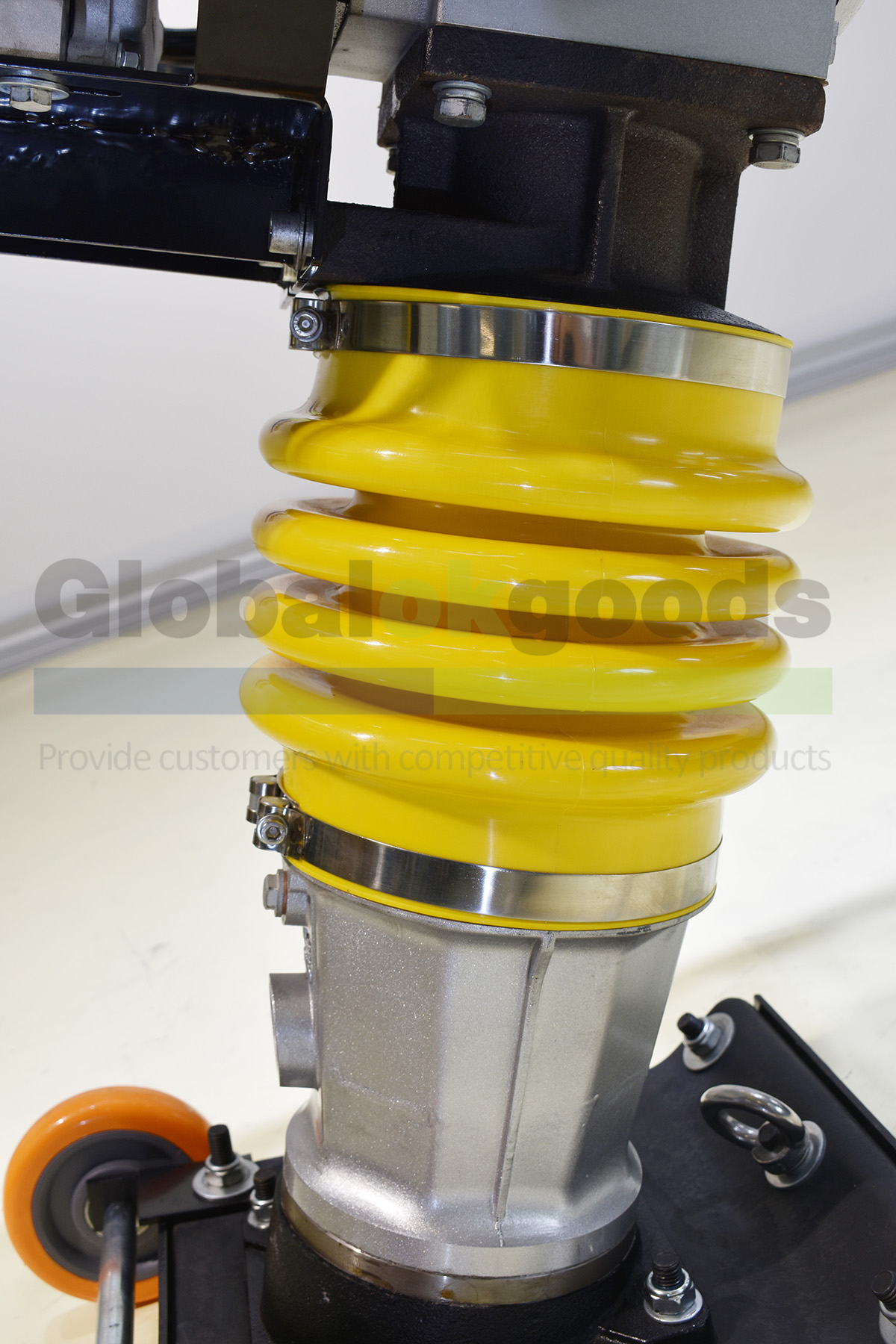

Heavy-duty shock mounts reduce vibration to the upper engine&handle.
An integrated fuel provides for easy starting.

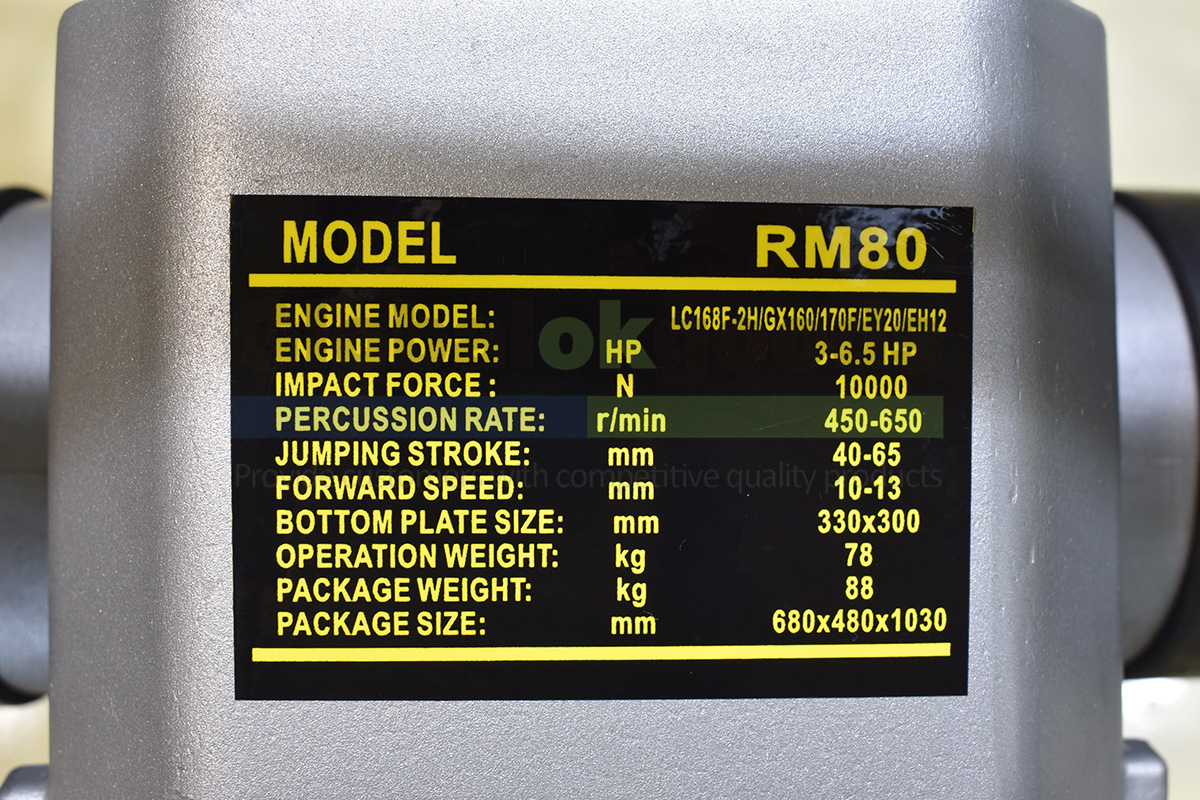

Product Specification

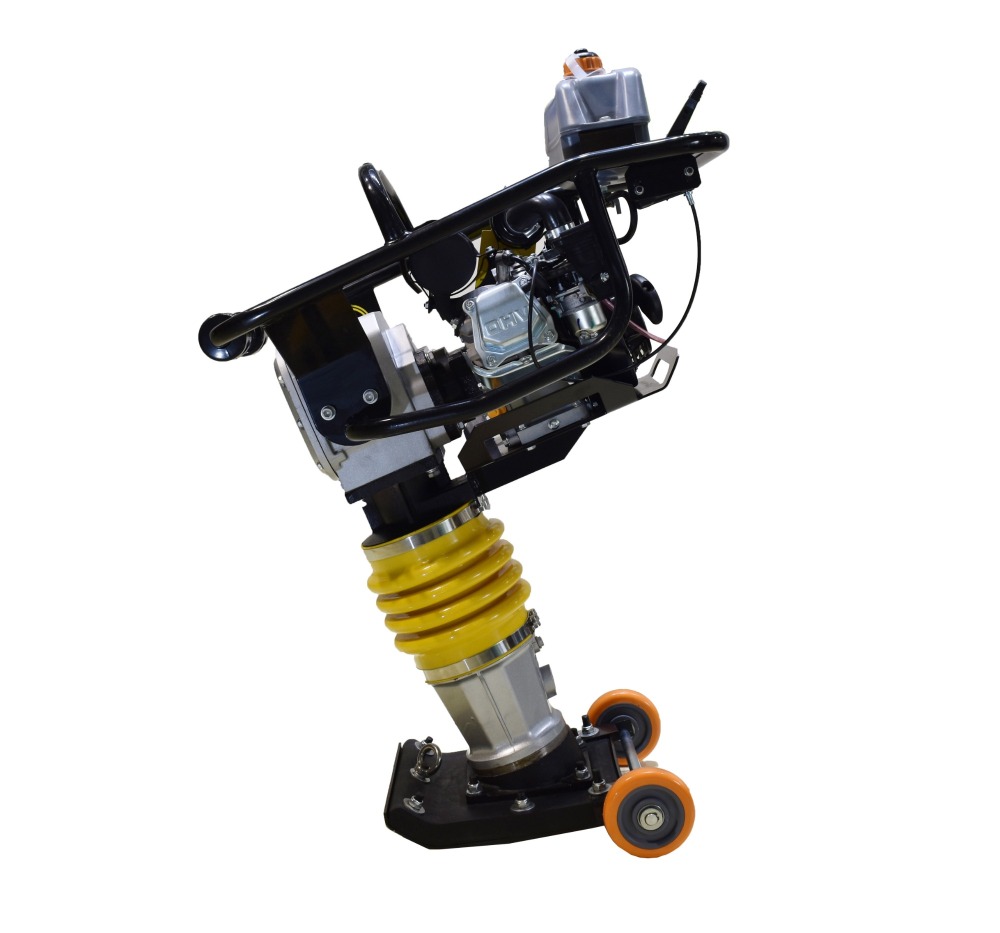

Model	WH-RM80R	WH-RM80H	WH-RM80L	WH-RM80D
Engine type	Air-cooled single cylinder 4-stroke
Engine	Robin EH12-2D	Honda GX160	Loncin LC168F-2H	Diesel，170F
Engine power（HP）	4.0	5.5	6.5	4.0
Jumping strike （max）mm（in）	40-65
impact force（max）KN	10
Advancing speed（m/min）	10-13
plate size（mm）	34*28.5
Fuel Tank	2.8
lmpact number（perminutes）	450-660
Operating Weight（kg）	78
Shipping Weight（kg）	85
Package size（LWH）（cm）	78.547.5114

Engine Periodic Maintenance Schedule
Performed at every indicated month or operation hours interval, whichever comes first.		REGULAR SERVICE PERIOD
Item	Directive	Each use	First month or 20 Hrs.	Every 3 months or 50 Hrs.	Every 6 months or 100 Hrs.	Every year or 300 Hrs.
Engine oil	Check level	√
Engine oil	Change		√		√
Air cleaner	Check	√
	Clean			√(1)
	Replace					√＊
Sediment cup	Clean				√
Spark plug	Check-Clean				√
Spark plug	Replace					√
Idle speed	Check-Adjust					√(2)
Valve clearance	Check-Adjust					√(2)
Fuel rank and strainer	Clean					√(2)
Combustion chamber	Clean	After every 300 Hrs. (2)
Fuel line	Check	Every 2 years (Replace if necessary) (2)
＊ Replace the paper element type only.
(1) Service more frequently when used in dusty areas.
(2) These items should be serviced by your servicing dealer unless you have the proper tools and are mechanically proficient. Refer to manual for service procedures.

Tamping rammer Periodic Maintenance Schedule
Directive	Daily before starting	After first 5 Hrs.	After first 50 Hrs.	Every week or 25 Hrs.	Every month or 100 Hrs.	Every 3 months or 300 Hrs.
Check fuel level	√
Check oil level of machine	√
Check fuel level line and fittings for cracks or leaks	√
Tighten ramming shoe hardware		√		√
Check and tighten engine clylinder screws		√		√
Check and tighten external hardware		√		√
Clean engine cooling fins				√
Clean recoil starter						√
Change rammer system oil			√			√
Clean engine muffler and exhaust port						√
Note: If engine performance is poor, please check, clean and replace air filter elements as needed.
